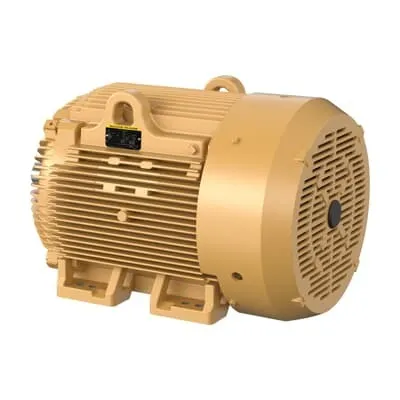

ABB 7BEM4400TS General Purpose Motor - Premium Efficiency
Part Number: 7BEM4400TS
Quick Summary
ABB 7BEM4400TS is a general purpose motor for 3-phase drives in industrial machinery and conveyors. It is designed to minimize downtime and simplify integration, with fast stock and zero-day lead times across multiple warehouses. The motor carries CSA US and CSA EEV certifications, aligns with NEMA Design B, and delivers Premium Efficiency performance. Its dual voltage capability (230/460 V) and TEFC enclosure support reliable operation in challenging environments, helping you lower energy costs while maintaining consistent throughput in manufacturing, packaging, and material handling applications.
Product Information
Extended Description
7BEM4400TS ABB: General Purpose Motor 100 Hp 230 V (EM4400TS)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1785RPM,3PH,60HZ,405TS,A40064
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4400TS
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
617429-002: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
EM4400TS
Gross Volume
57062.5 in³
Gross Weight
552.476 kg
Horsepower Rating UL/CSA
100.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
100HP,1785RPM,3PH,60HZ,405TS,A40064M,TEF
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 100 HP, 1800 RPM, Frame Size 405Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM44
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
100 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
50 in
Product Net Height
27.5 in
Product Net Weight
552.476 kg
Product Net Width
41.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
224 A | 112 A
Rated Efficiency
95.40 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
100 HP, 1800 RPM, Frame Size 405Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
230 V | 460 V
Premium efficiency and power density drive lower energy costs and improved overall equipment efficiency (OEE) for continuous-load conveyors and processing lines. The 100 HP rating, 1785 r/min speed, and 4-pole configuration provide strong torque at startup and steady performance under load, reducing cycle times and wear on drive components. Dual voltage (230/460 V) offers flexible installation across plant power systems, enabling faster commissioning and simpler spares management for multi-site operations. The TEFC enclosure with 405TS frame delivers robust protection in dusty environments, minimizing maintenance cycles and safeguarding rotor integrity in harsh manufacturing settings. Direct On Line starting simplifies commissioning and startup sequencing, minimizing downtime during line changes or maintenance outages. Regreasable lubrication supports long service intervals, while the 60-minute duty class helps manage peak loads without overheating. Stock availability across multiple warehouses and 0-day lead times translate into shorter project lead times and reduced downtime for critical line upgrades. NEMA Design B and Premium Efficiency standards ensure predictable torque, safety, and regulatory compliance, supporting energy-reduction initiatives and lifecycle cost optimization.
