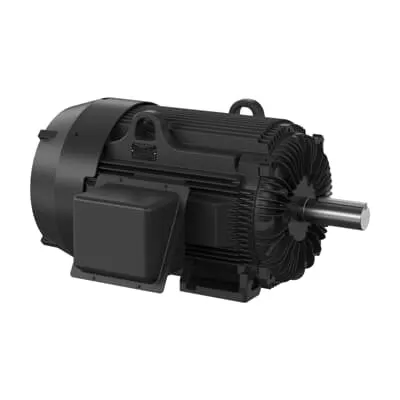

ABB 7BEM4407T-4 General Purpose Motor - TEFC NEMA Premium
Part Number: 7BEM4407T-4
Quick Summary
ABB 7BEM4407T-4 is a general purpose motor for 3-phase industrial drives. It delivers reliable 200 HP performance at 460 V and 1785 rpm, ideal for pumps, fans, and conveyors in demanding environments. This motor combines Premium Efficiency ratings with a TEFC enclosure to reduce energy costs and enhance durability where dust, grime, or airborne contaminants are present. Designed for quick deployment, it ships stock-from multiple warehouses, supports straightforward servicing, and provides a 1.15 service factor for uptime where continuous operation is critical. With regreasable bearings and a rugged 447T frame, this solution balances long-term life-cycle value with immediate integration into existing systems.
Product Information
Extended Description
7BEM4407T-4 ABB: General Purpose Motor 200 Hp 460 V (EM4407T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
200HP,1785RPM,3PH,60HZ,447T,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4407T-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617427-002: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
447
Frequency (f)
60 Hz
Global Commercial Alias
EM4407T-4
Gross Volume
142222.5 in³
Gross Weight
2497 lb
Horsepower Rating UL/CSA
200.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
200HP,1785RPM,3PH,60HZ,447T,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 200 HP, 1800 RPM, Frame Size 447T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (EM4407T-4
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
200 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
63 in
Product Net Height
52.5 in
Product Net Weight
2497 lb
Product Net Width
43 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
222 A
Rated Efficiency
96.20 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
200 HP, 1800 RPM, Frame Size 447T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature → Business Impact → Application: Premium Efficiency (96.20%) reduces energy consumption and operating costs, improving return on investment for continuous-duty applications like pumps and fans. Application: Industrial plants aiming to lower power usage while maintaining performance. Feature → Business Impact → Application: TEFC enclosure provides robust protection against dust and moisture, extending motor life in harsh factory environments. Application: Outdoor or dirty-room installations such as material handling, conveyors, and HVAC systems. Feature → Business Impact → Application: 200 HP at 460 V and 1785 rpm ensures compatibility with standard 60 Hz drives and existing VFDs, enabling seamless integration and scalable capacity. Application: Process pumps and compressors with established electrical infrastructure. Feature → Business Impact → Application: Foot-mounted, horizontal orientation with a 447T frame simplifies installation and reduces retrofit time. Application: Retrofit projects and new line installations in manufacturing cells. Feature → Business Impact → Application: Regreasable bearings and 60-minute duty support predictable maintenance windows and durable operation under peak loads. Application: Continuous duty conveyors and fans with scheduled maintenance. Feature → Business Impact → Application: Stocked availability across warehouses (US, EU, and Asia locations) enables fast procurement, reducing downtime and accelerating project timelines. Application: Global projects requiring rapid deployment and consistent lead times.
