ABB 7BEM4407TS-4 General Purpose Motor - CSA EEV
Part Number: 7BEM4407TS-4
Quick Summary

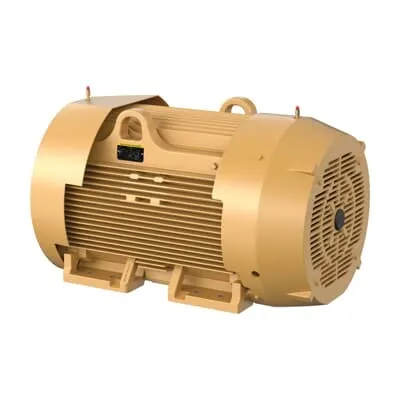

ABB 7BEM4407TS-4 is a general-purpose 3-phase motor for industrial drives, delivering dependable power for pumps, conveyors, and fans. This 200 HP unit operates at 460 V with a rated speed of 1785 r/min, making it a solid choice for continuous-duty applications in demanding environments. The TEFC enclosure and a rugged 447TS frame help resist dust, heat, and vibration while simplifying installation in harsh plant floors. The motor carries NEMA-based design and CSA EEV certification, underscoring safety and reliability across systems. For buyers and integrators, the combination of high efficiency, predictable performance, and broad stock availability translates into lower lifecycle costs and faster project timelines. In practice, this ABB motor integrates with standard drives and meets common procurement footprints.
Product Information
Extended Description
7BEM4407TS-4 ABB: General Purpose Motor 200 Hp 460 V (EM4407TS-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
200HP,1785RPM,3PH,60HZ,447TS,A44120
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4407TS-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617427-005: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
447
Frequency (f)
60 Hz
Global Commercial Alias
EM4407TS-4
Gross Volume
85995 in³
Gross Weight
2376.001 lb
Horsepower Rating UL/CSA
200.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
200HP,1785RPM,3PH,60HZ,447TS,A44120M,TEF
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 200 HP, 1800 RPM, Frame Size 447Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (EM4407TS
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
200 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
60 in
Product Net Height
31.5 in
Product Net Weight
2376.001 lb
Product Net Width
45.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
222 A
Rated Efficiency
96.20 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
200 HP, 1800 RPM, Frame Size 447Ts, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Premium efficiency reduces energy losses and cooling load, cutting operating costs over the motor’s lifecycle and improving plant reliability in pumps and conveyors. The TEFC enclosure paired with a durable 447TS frame delivers rugged protection against dust and moisture, enabling longer service intervals in challenging manufacturing environments and easier retrofits. With 3-phase operation at 460 V, 60 Hz and a 1785 r/min rated speed, this motor aligns with standard electrical distributions and VFD-friendly drive schemes, simplifying integration into existing control architectures. Direct On Line starting and a 4-pole design minimize control complexity while preserving mechanical integrity and quick startup, which translates to reduced downtime during line changes. Regreasable bearings and an insulation class of F support extended maintenance windows and stable thermal performance under continuous duty. Stocked across multiple warehouses with 0-day lead times further improves project timelines and total cost of ownership for retrofit and expansion projects.
Get a Quick Quote for a ABB 7BEM4407TS-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM4407TS-4?
Enquire Now
FAQs
Yes. The 7BEM4407TS-4 runs on 460 V, 3-phase power and uses the standard 447TS frame with a foot-mounted configuration. It supports Direct On Line starting and is designed for seamless integration with common VFDs and control panels, minimizing cabinet rework and cabling changes during upgrades or new installations.
Key specs include 200 HP output, 1785 r/min (60 Hz), 460 V, and a rated current around 222 A. The motor carries a Premium Efficiency rating (approximately 96.2%) and a 3-phase, 4-pole design, which translates to lower energy use and cooler operation under full load with typical starting currents suitable for DOL starting.
Absolutely. With a TEFC enclosure, 447TS frame, and insulation class F, the motor is well-suited for continuous-duty operation in dusty or warm plant rooms. NEMA Design B and a robust mechanical design provide reliable torque and longevity for continuous processes, reducing unscheduled downtime in conveying and pumping systems.
The motor adheres to NEMA-based design guidelines and holds CSA EEV certification with listing as CCSA US, indicating strong safety and quality controls. While CE is not specified in the provided data, these certifications support compliance in many North American facilities and licensed industrial environments.
Regreasable bearings and a maintenance-friendly design reduce preventive maintenance cycles and downtime. Availability is aided by stock across multiple warehouses and 0-day lead times, enabling rapid replacement or expansion. Together, these factors improve ROI by lowering maintenance costs and accelerating project timelines.
