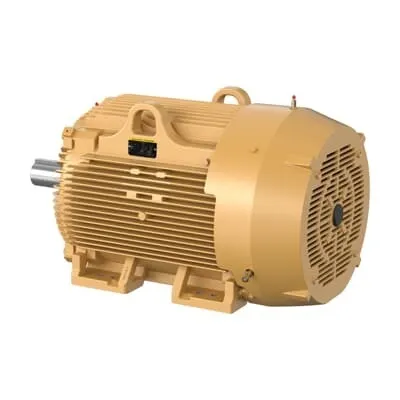

ABB EM4410TR-4 General Purpose Motor - 125HP, 460V TEFC
Part Number: 7BEM4410TR-4
Quick Summary
ABB EM4410TR-4 125 HP motor drives general-purpose machinery in industrial manufacturing and processing lines. When uptime and fast delivery matter, long supplier lead times can stall projects and cause costly downtime. This model counters that with 0-day lead times and stock across multiple warehouses, including US and international facilities. It carries CSA EEV, CCSA US, and NEMA design standards, plus Premium Efficiency, delivering safety, energy savings, and reliable operation. Use it to streamline procurement, reduce risk, and support scalable drives and controls in conveyors, pumps, and fans in harsh production environments.
Product Information
Extended Description
7BEM4410TR-4 ABB: General Purpose Motor 125 Hp 460 V (EM4410TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
125HP,1785RPM,3PH,60HZ,444T,A44076M
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4410TR-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617427-001: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
444
Frequency (f)
60 Hz
Global Commercial Alias
EM4410TR-4
Gross Volume
105899.063 in³
Gross Weight
901.742 kg
Horsepower Rating UL/CSA
125.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
125HP,1785RPM,3PH,60HZ,444T,A44076M,TEFC
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 125 HP, 1800 RPM, Frame Size 444T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (EM4410TR-
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
444T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
125 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
49.5 in
Product Net Height
52.5 in
Product Net Weight
901.742 kg
Product Net Width
40.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
144 A
Rated Efficiency
95.40 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
125 HP, 1800 RPM, Frame Size 444T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: TEFC enclosure and 40 °C ambient rating. Business Impact: Enables durable operation in dusty, moderately hot environments with reduced maintenance and longer service life. Application: Dusty conveyors, fans, and pump stations in manufacturing plants. Narrative: The TEFC design keeps contaminants out and thermal performance steady, supporting reliable 24/7 operation in demanding facilities. Feature: Premium efficiency (95.40 %) and 60 Hz, 460 V three-phase supply. Business Impact: Lowers energy consumption and operating costs over the motor’s lifetime, improving total cost of ownership. Application: Continuous-duty drives in material handling and process lines. Narrative: High efficiency translates to measurable energy savings, especially in long-running equipment and cooling-limited systems. Feature: NEMA Design B, Service Factor 1.15, Insulation Class F. Business Impact: Provides robust torque headroom and thermal resilience, reducing nuisance trips and extending motor life. Application: Presses, mixers, and fans requiring dependable overload tolerance. Narrative: Design B with a healthy service factor supports short-duration overloads common in startup and load-lurch conditions. Feature: Frame 444T, Foot Mounted mounting type, Horizontal orientation. Business Impact: Simplifies installation and retrofit with a standard footprint, reducing downtime and implementation risk. Application: Retrofit projects and new line setups, easily aligning with existing bases. Narrative: The familiar frame and mounting options speed up installation and maintenance workflows. Feature: 0-day lead time and multi-warehouse stocking. Business Impact: Minimizes downtime and accelerates project timelines, improving time-to-value. Application: Any capital project with aggressive schedules or spare-part planning needs. Narrative: Ready-to-ship stock across regions supports just-in-time procurement and rapid response to demand surges. Feature: Shaft diameter, weight, and mechanical specs (3.38 in, 901.742 kg). Business Impact: Facilitates mechanical integration, shaft coupling selection, and vibration/ bearing design considerations. Application: System integration with pumps, conveyors, and gear drives. Narrative: Precise mechanical data reduces rework and field adjustments during installation.
