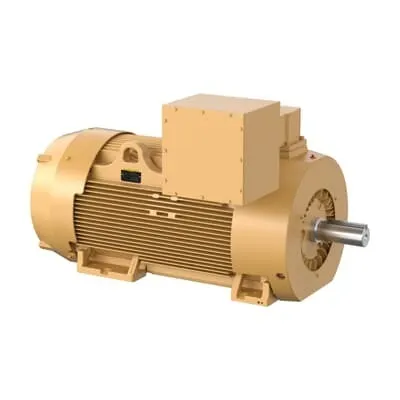

ABB 7BEM44306T-4 General Purpose Motor - CSA EEV
Part Number: 7BEM44306T-4
Quick Summary
General purpose motor ABB EM44306T-4 delivers reliable 300 HP performance for heavy-duty pumps, fans, and conveyors in demanding industrial environments. With a 0-day lead time and stock across multiple warehouses, it minimizes downtime and obsolescence risk for critical machinery. The unit carries CSA EEV and CCSA US certifications and conforms to NEMA-based standards, while delivering Premium Efficiency performance that reduces energy costs over the motor’s service life. Its TEFC enclosure, L449T frame, and a robust foot-mounted design simplify installation, alignment, and routine maintenance in crowded plant spaces. Designed for 3-phase, 460 V, 60 Hz systems, this motor supports OEMs and maintenance teams seeking scalable drive solutions without compromising reliability.
Product Information
Extended Description
7BEM44306T-4 ABB: General Purpose Motor 300 Hp 460 V (EM44306T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
300HP,1190RPM,3PH,60HZ,L449T,TEFC,F
Ambient Temperature
40 °C
Bearing
110BC02J30X, Ball
Bearing NDE
90BC03J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM44306T-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
617423-200: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
449
Frequency (f)
60 Hz
Global Commercial Alias
EM44306T-4
Gross Volume
160584.25 in³
Gross Weight
3626.001 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
300HP,1190RPM,3PH,60HZ,L449T,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 300 HP, 1200 RPM, Frame Size L449T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (EM44306T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
L449T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
300 Hp
Power Factor
86 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
71 in
Product Net Height
41.5 in
Product Net Weight
3626.001 lb
Product Net Width
54.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
340 A
Rated Efficiency
95.80 %
Rated Speed
1190 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
3.38 in
Short Description
300 HP, 1200 RPM, Frame Size L449T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: 300 HP output at 460 V and 60 Hz. Business Impact: Enables high-torque drive for demanding mechanical loads while maintaining energy efficiency; Application: Pumps, fans, and conveyors in process and manufacturing facilities. The motor’s 1190 r/min synchronous speed and 6-pole design provide stable performance with predictable ramp and startup behavior. Feature: Premium Efficiency (Energy Star level) and insulation class F. Business Impact: Reduces operating costs over the life of the motor and enhances thermal robustness in hot plants; Application: Continuous duty in dusty or humid environments where heat dissipation is a concern. Feature: TEFC enclosure and frame L449T with foot mounting. Business Impact: Tough protection against dust and moisture, straightforward installation, and easier alignment in retrofit projects; Application: OEM line upgrades and plant-wide motor replacements. Feature: Rated Current 340 A and service factor 1.15. Business Impact: Flexible load tolerance and reliability under short-term overloads; Application: Variable load scenarios in material handling and irrigation systems. Feature: Certifications and compliance (CSA EEV, CCSA US, NEMA). Business Impact: Simplifies regulatory approvals and strengthens safety margins for industrial automation projects; Application: Plants with strict compliance requirements and multi-site deployments.
