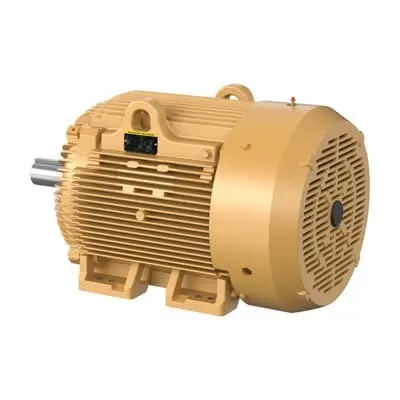

ABB 7BEM4468T General Purpose Motor - Premium Efficiency
Part Number: 7BEM4468T
Quick Summary
ABB 7BEM4468T General Purpose Motor is a rugged 3-phase drive built for continuous operation in demanding industrial settings. This 60 HP, 890 RPM motor is designed to reduce energy consumption while maintaining reliable performance in conveyors, pumps, and fans. Engineers often struggle with mismatched voltage, enclosure exposure, and escalating operating costs; this motor addresses those challenges with a TEFC enclosure, 230/460 V compatibility, and premium efficiency. Certified for NEMA-based design and CSA/CCSA US approvals, it aligns with industry standards to simplify compliance. In addition to robust performance, the motor offers straightforward sourcing, stock availability across warehouses, and a clear warranty pathway, delivering strong total cost of ownership value for industrial buyers.
Product Information
Extended Description
7BEM4468T ABB: General Purpose Motor 60 Hp 230 V (EM4468T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,890RPM,3PH,60HZ,405T,TEFC,F1
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4468T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617429-001: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
EM4468T
Gross Volume
57172.5 in³
Gross Weight
537.961 kg
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
60HP,890RPM,3PH,60HZ,405T,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 60 HP, 900 RPM, Frame Size 405T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM4468T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
79 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
49.5 in
Product Net Height
27.5 in
Product Net Weight
537.961 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
152 A | 76 A
Rated Efficiency
93 %
Rated Speed
890 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.88 in
Short Description
60 HP, 900 RPM, Frame Size 405T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The TEFC enclosure provides superior protection against dust, moisture, and contaminants, reducing downtime and maintenance costs in dusty or humid environments; this enables reliable operation in material handling and processing lines. The 60 HP, 890 RPM, 8-pole configuration matches typical continuous-duty loads such as pumps and fans, delivering stable speeds and predictable torque for precise process control. Premium efficiency improves energy intensity during long-running cycles, delivering measurable energy savings and lower life-cycle costs in HVAC and manufacturing facilities. The 230 V / 460 V dual voltage rating offers flexible installation options across existing plant electrical systems, simplifying motor replacement and reducing wiring complexity in retrofit projects. Foot-mounted, horizontal mounting with a 405T frame supports quick installation and straightforward alignment with standard bases and couplings, minimizing downtime during commissioning. NEMA design B and 60 Hz operation meet common industrial standards, easing integration with plant controls and soft-start devices. The Direct On Line starting characteristic supports simple automation logic while preserving motor protection and overload handling for conveyors and mixers. Industry context shows that a single motor can serve multiple lines with minimal reconfiguration, reducing spare parts inventory and procurement lead times. The motor’s robust insulation class F and 900 rpm synchronous speed provide resilience in thermal and vibration-heavy environments, improving uptime in heavy-duty applications such as crushers or extruders. In practice, this translates to lower total cost of ownership, improved reliability, and easier long-term maintenance planning for OEMs and end users.
