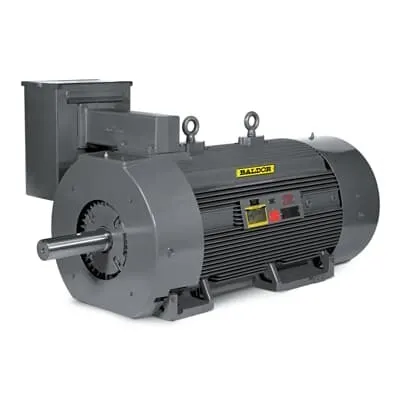

ABB 7BEM50804L-2340 MV Above NEMA Baldor AC Induction M - TEFC
Part Number: 7BEM50804L-2340
Quick Summary
ABB 7BEM50804L-2340 is a high-power AC induction motor designed for demanding conveyors, pumps, and process lines. When integrating into new builds or retrofits, engineers seek reliability, predictable lead times, and long-term spare parts availability. This unit is UL/CSA certified with a TEFC enclosure and 60 Hz operation, backed by a United States origin to support compliance and traceability. By leveraging its 800 HP rating and 1,791 rpm, manufacturers achieve higher throughput while reducing energy use and maintenance costs through its 95.8% efficiency and 1.15 service factor.
Product Information
Extended Description
7BEM50804L-2340 ABB: 4,000 V
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
800HP,1791RPM,3PH,60HZ,5012,TEFC,F1
Country of Origin
United States (US)
Customs Tariff Number
85015381
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
EM50804L-2340
Gross Weight
6440 lb
Horsepower Rating UL/CSA
800.000 Hp
Invoice Description
800HP,1791RPM,3PH,60HZ,5012,TEFC,F1
Made To Order
No
Minimum Order Quantity
1 piece
Motor Frame Size
5012
Number of Phases
3
Number of Poles
4P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
87 %
Product Name
MV Above NEMA Baldor AC Induction M
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
6440 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
178 A | 102 A
Rated Efficiency
95.8 %
Rated Speed
1,791 r/min
Selling Unit of Measure
piece
Service Factor Percentage
1.15 %
Stocked At (Warehouses)
China
UNSPSC
26101100
Voltage Rating
4,000 V | 2,300 V
WEEE Category
Product Not in WEEE Scope
Feature: 5012 frame, 3-phase, 60 Hz operation, and 1,791 rpm. Business Impact: Delivers high torque and smooth startup with a proven footprint that aligns with standard industrial drives, reducing system integration risk. Application: Heavy-duty conveyors and processing lines require reliable, automatically controlled performance. Feature: TEFC enclosure. Business Impact: Provides robust protection against dust, moisture, and contamination, extending motor life in harsh environments. Application: Wood, steel, and cement plant applications where enclosure integrity minimizes maintenance. Feature: 4,000 V (and 2,300 V) high-voltage rating. Business Impact: Enables direct compatibility with high-voltage drive systems and extended cable runs, lowering wiring complexity. Application: Plant-wide motor control networks with medium to high voltage requirements. Feature: Efficiency 95.8% and service factor 1.15. Business Impact: Reduces energy costs and extends motor life under peak loads, improving total cost of ownership. Application: Continuous-duty fans, pumps, and mixers in manufacturing settings. Feature: UL/CSA certification and US origin. Business Impact: Supports compliance, traceability, and faster procurement with trusted supplier criteria. Application: Industrial facilities with strict regulatory and quality standards. Feature: Weight, current, and dimensions (6440 lb gross, 178 A / 102 A rated current). Business Impact: Assists with drive sizing, cooling planning, and mechanical mounting considerations. Application: Retrofit projects and new builds requiring precise electrical loading and physical fit.
Get a Quick Quote for a ABB 7BEM50804L-2340
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM50804L-2340?
Enquire Now
FAQs
This motor uses a 5012 frame with a TEFC enclosure and standard 3-phase connections. Plan for a 60 Hz supply, 4,000 V rating (and 2,300 V as applicable), and ensure compatible mounting with the 5012 footprint. Confirm shaft dimensions and coupling compatibility, and verify drive compatibility with your VFD or soft-start system.
The unit delivers 800 HP with a rated current of 178 A / 102 A and a rated speed of 1,791 r/min. It operates at 60 Hz with a power factor around 87%, and an efficiency of 95.8%. The enclosure is TEFC, providing protection in dirty or humid environments, while the service factor is 1.15 for headroom under peak loads.
Yes. With a 5012 frame, TEFC enclosure, and 800 HP output, this motor is well-suited for heavy-duty drives in conveyors, pumps, and processing lines. Its high-voltage rating and robust efficiency support continuous operation and high-throughput applications while minimizing energy-related operating costs.
The motor is UL/CSA certified, originates from the United States, and is designed for high-integrity industrial controls. This combination supports safer operation, regulatory compliance, and easier procurement for facilities with strict supplier qualification requirements.
The TEFC enclosure, high efficiency (95.8%), and solid 1.15 service factor reduce cooling demand and mechanical stress, extending service intervals. With an 800 HP rating and durable 5012 frame, the motor delivers predictable uptime, lower energy costs, and strong resale value, contributing to favorable total cost of ownership in continuous-Run environments.
