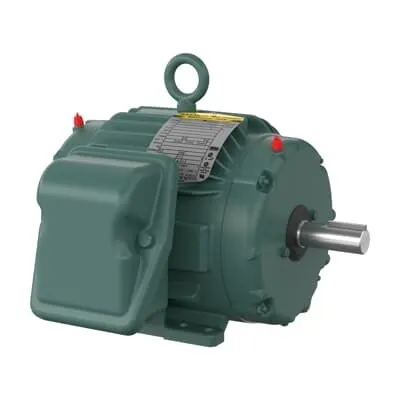

ABB ENCP83580T-4 IEEE 841 Severe Duty Motor - 1 HP 460V
Part Number: 7BENCP83580T-4
Quick Summary
ABB ENCP83580T-4 is a 1 HP IEEE 841 severe duty motor designed for continuous operation in harsh industrial environments such as pumps, conveyors, and compressors. This design targets uptime and predictable performance in demanding facilities where reliability directly impacts productivity. It carries North American certifications including NEMA Premium efficiency, UL/CSA with UR recognition, ensuring compliance across regulated environments. With a rugged TEFV enclosure, 143T frame, and 3-phase, 460 VAC operation, the ENCP83580T-4 is built to integrate quickly into existing systems while delivering proven durability, energy efficiency, and long service life for scalable automation projects.
Product Information
Extended Description
7BENCP83580T-4 ABB: Severe Duty Motor 1 Hp 460 V (ENCP83580T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,3PH,60HZ,143T,0520M,TEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ENCP83580T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
05LYE276: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
ENCP83580T-4
Gross Volume
3496.049 in³
Gross Weight
56 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
1HP,3450RPM,3PH,60HZ,143T,0520M,TENV,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 1 HP, 3600 RPM, Frame Size 143T, Standard Mounting, 3 Phase, TENV Enclosure, 460 V, 60 Hz (ENCP83580T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
88 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
56 lb
Product Net Width
13.75 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
1.3 A
Rated Efficiency
77 %
Rated Speed
3490 r/min
Replaced Product ID (OLD)
7B05E276W634G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 3600 RPM, Frame Size 143T, Standard, 3 PH, TENV, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
460 V
Feature → Business Impact → Application: IEEE 841 Severe Duty construction underpins reliability in hot, dusty, or vibration-prone settings, reducing unplanned downtime and maintenance costs. For plant floors with continuous duty cycles, this translates into steadier production lines and lower total cost of ownership when paired with 1 HP, 460 V, 3-phase power and a 143T frame. Application: ideal for pumps, fans, and conveyors in mining, chemical, and manufacturing environments. Feature → Business Impact → Application: NEMA Premium efficiency and IE3/UL/CSA certifications deliver lower energy consumption and regulatory compliance, lowering operating expenses and audit risk. In long-running processes, energy savings compound, supporting tighter sustainability targets while maintaining excellent power factor (88%). Application: mid-size industrial drives and HVAC applications that demand consistent efficiency. Feature → Business Impact → Application: TE V enclosure (TENV) with a robust 60 Hz design resists dust and heat, enabling operation up to 40 °C ambient and at altitudes up to 1000 m. This reduces cooling requirements, improves reliability, and simplifies installation in unconditioned spaces. Application: equipment in outdoor or semi-conditioned facilities, such as mining conveyors or water treatment pumps. Feature → Business Impact → Application: Regreasable bearings (6205 Ball) and lubricated maintenance plan extend bearing life, minimizing downtime and maintenance cycles. Application: equipment with frequent starts and stops or variable loads on 3-phase systems, including mixers and grinders. Feature → Business Impact → Application: Direct-on-line starting and foot-mounted, horizontal mounting with 143T frame and 0.88 in shaft diameter streamline installation, retrofit, and spare-part planning. Application: retrofits and new builds requiring quick commissioning and straightforward alignment with existing bases.
