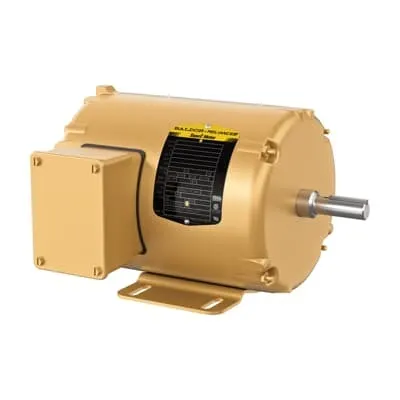

ABB 7BENM3546 General Purpose Motor - Premium Efficiency
Part Number: 7BENM3546
Quick Summary
General Purpose Motor 7BENM3546 drives three-phase power in a wide range of industrial equipment. When downtime and energy costs bite into productivity, you need a reliable, efficient motor that fits your footprint and budget. This ABB motor carries CSA, CSA EEV, and UR certifications, plus a NEMA B design and Premium Efficiency rating to meet critical safety and performance standards. Stocked in 230/460 V and a 56 frame with horizontal, foot-mounted mounting, it enables fast procurement and straightforward installation for OEMs and maintenance teams. Built for continuous operation, it supports design-for-procurement goals while reducing energy consumption across pump, fan, and conveyor applications.
Product Information
Extended Description
7BENM3546 ABB: General Purpose Motor 1 Hp 230 V (ENM3546)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,56,3522M,TENV,
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ENM3546
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYA026: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
ENM3546
Gross Volume
2110.969 in³
Gross Weight
39 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,56,3522M,TENV,F1,N
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 1 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ENM3546)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
39 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Dual voltage capability (230 V / 460 V) enhances compatibility across equipment and reduces spare-part complexity. Business Impact: Simplifies stocking and eliminates the need for multiple skewed SKUs, cutting total cost of ownership. Application: Suitable for conveyors, pumps, and fans in mixed-voltage environments. Feature: TENV enclosure design provides robust protection in moderate ambient conditions. Business Impact: Improves reliability and reduces maintenance cycles in open or semi-enclosed installations. Application: General purpose motor in manufacturing lines and process equipment. Feature: Frame 56, foot-mounted, horizontal mounting for easy installation and retrofit. Business Impact: Quicker commissioning, lower mounting customizations, and safer servicing. Application: OEM machines and retrofit projects where space is constrained. Feature: Premium Efficiency (NEMA 12-12) and insulation class F. Business Impact: Energy savings, cooler operation, and extended motor life under continuous duty. Application: Continuous-process equipment and high-duty cycle fans/pumps. Feature: CSA / CSA EEV / UR certifications with NEMA design code B. Business Impact: Simplified compliance for regulated facilities and rigorous safety validation. Application: Hazardous or regulated environments requiring comprehensive approvals. Feature: Stock availability and fast lead time (0 day lead time). Business Impact: Improves project timelines and uptime by aligning procurement with production schedules. Application: New installations, spare parts strategy, and maintenance planning for industrial plants.
Get a Quick Quote for a ABB 7BENM3546
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BENM3546?
Enquire Now
FAQs
Yes. The 7BENM3546 is designed for dual voltage operation, supporting 230 V and 460 V systems. This reduces spare parts complexity and stocking requirements while enabling flexible deployment across equipment such as conveyors and pumps.
The motor delivers 1 HP at 1770 r/min with 60 Hz frequency. It operates at 230 V or 460 V in a 3-phase configuration, with rated currents around 3.34 A / 1.67 A and a power factor of approximately 66%. The insulation class is F, and the enclosure is TENV.
Yes. It carries CSA, CSA EEV, and UR certifications, along with a NEMA design B designation and Premium Efficiency rating, ensuring safety, energy efficiency, and regulatory compliance in many North American facilities.
Stock is maintained across multiple warehouses (including US and international sites). Lead time is listed as 0 day, enabling rapid fulfillment and deployment for ongoing projects and maintenance windows.
With a foot-mounted, horizontal F1 mounting arrangement and a 56 frame, install on a standard base plate, use proper shaft and flange alignment, and schedule routine inspections for insulation and bearing wear. The motor’s continuous-duty rating and TENV enclosure support long intervals between maintenance cycles when properly mounted and cooled.
