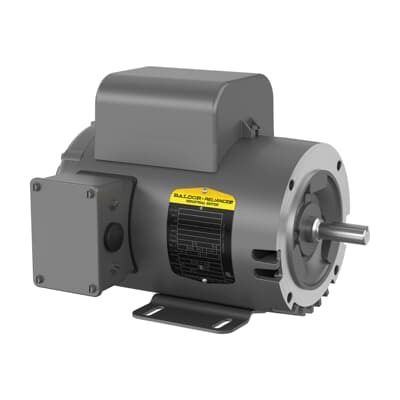

ABB EPCL1322M General Purpose Motor - 1PH, 60Hz, 2 HP
Part Number: 7BEPCL1322M
Quick Summary
EPCL1322M is a general purpose motor designed for single-phase 2 HP, 115 V open-enclosure installations. This ABB Baldor-Reliance unit delivers reliable starting and steady performance in light-duty drives, conveyors, and pumps. Engineers often confront downtime due to long lead times or lack of compatible replacements, especially for 1PH 60 Hz equipment. Verified for UL/CSA/UR, with an open enclosure and NEMA alignment, it simplifies field service and reduces enclosure costs. The motor's 56C frame, foot mounting, and C-face interface support straightforward retrofit and standardized wiring. With stock availability across multiple warehouses, pursuing faster procurement supports project timelines and total cost of ownership reductions.
Product Information
Extended Description
7BEPCL1322M ABB: General Purpose Motor 2 Hp 115 V (EPCL1322M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1725RPM,1PH,60HZ,56C,3546LC,OPE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EPCL1322M
Certification Agency
C UR US ENERGY | CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYK267: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EPCL1322M
Gross Volume
2110.969 inÂł
Gross Weight
66 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
2HP,1725RPM,1PH,60HZ,56C,3546LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 2 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (EPCL1322M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
93 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
66 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.4 A | 8.2 A
Rated Efficiency
84.50 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
2 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The EPCL1322M uses a 56C frame and open enclosure, enabling a compact footprint and simpler air cooling in open-mounted layouts, which reduces enclosure costs and accelerates installation in conveyors and pumps. This 1PH, 115/230 V motor delivers Direct On Line starting, letting you simplify control panels and reduce startup complexity on small packaging lines. The 2 HP output at 1725 rpm provides consistent torque for continuous duty, improving line throughput while maintaining efficiency. With a PF of 93% and rated efficiency of 84.5%, operating costs drop and heat generation stays manageable in typical manufacturing environments. Ball bearings (6205/6203) extend life and decrease maintenance, even in high-cycle applications. The insulation class F and ambient rating up to 40 °C support reliable performance in standard plant conditions. Stocked worldwide with 0 day lead time, installation planning and procurement are streamlined, minimizing downtime and inventory costs. The design is compatible with 56C frame mounts, C-face adapters, and standard foot mounting, ensuring easy retrofit into existing systems.
