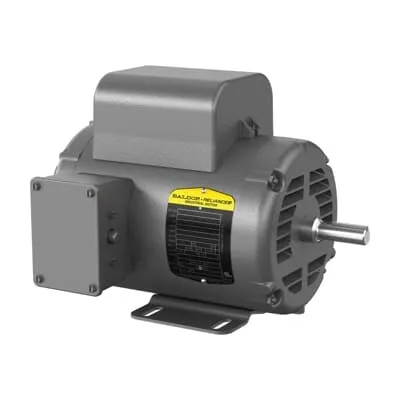

ABB EPL1317M Pressure Washer Motor - Open Frame, 2HP
Part Number: 7BEPL1317M
Quick Summary
The ABB EPL1317M pressure washer motor is a robust 2 HP single‑phase drive designed to power industrial cleaning equipment with reliability. This model addresses common pain points such as inconsistent performance, lengthy lead times, and enclosure mismatches by delivering a ready‑to‑install solution. With NEMA design code L, an OPEN enclosure, and CURUSEEV certification context, it supports durable operation in demanding environments. Built for efficiency and ease of integration, it fits alongside other ABB motors in industrial fleets, offering strong compatibility for field service and maintenance teams while supporting energy‑efficient cleaning workflows.
Product Information
Extended Description
7BEPL1317M ABB: Pressure Washer 2 Hp 115 V (EPL1317M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3470RPM,1PH,60HZ,56,3540LC,OPEN
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EPL1317M
Certification Agency
CURUSEEV
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EPL1317M
Gross Volume
3496.049 inÂł
Gross Weight
66 lb
Insulation Class
B
Invoice Description
2HP,3470RPM,1PH,60HZ,56,3540LC,OPEN,F1,N
Made To Order
No
Medium Description
Pressure Washer, 2 HP, 3600 RPM, Frame Size 56, Standard Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (EPL1317M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
99 %
Product Name
Pressure Washer
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
66 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15.6 A | 7.8 A
Rated Efficiency
82.90 %
Rated Speed
3470 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56, Standard, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The EPL1317M delivers 2 HP output at 3470 r/min with 60 Hz and 115/230 V single‑phase input, enabling powerful yet economical operation for high‑demand pressure washer cycles. This translates to improved cleaning throughput and lower energy cost per cycle in industrial facilities, car wash lines, and manufacturing floors. Frame size 56, foot‑mounted, horizontal mounting, and open enclosure simplify installation and serviceability, reducing downtime during maintenance and enabling quick retrofits into existing washer systems. The motor’s Service Factor of 1.15, direct‑on‑line starting, and 0.63 in shaft diameter enhance start‑up reliability and torque delivery, supporting tools and equipment that demand consistent shove at start‑up. With steel frame material and bearing configuration 6205, ball, the EPL1317M offers durability for continuous operation in demanding environments, while 3470 r/min nominal speed keeps pulse‑free operation in cleaning lines. Stock availability across multiple warehouses and a clear warranty policy minimize procurement risk and total cost of ownership in procurement cycles.
Get a Quick Quote for a ABB 7BEPL1317M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEPL1317M?
Enquire Now
FAQs
Yes. The EPL1317M is designed for 115 V or 230 V single‑phase operation, with a 56 frame size and foot‑mounted horizontal orientation. It uses direct‑on‑line starting for simple integration into existing washer assemblies, reducing wiring complexity and startup time while ensuring compatibility with common industrial power circuits.
Key specs include 2 HP output, rated speed 3470 r/min at 60 Hz, and a voltage rating of 115 V or 230 V. Current is 15.6 A (nominal) and 7.8 A, with a power factor around 99% and efficiency approximately 82.90%. The service factor is 1.15, enabling robust start‑up torque and reliable continuous operation in demanding cleaning tasks.
Absolutely. The EPL1317M is purpose‑built for pressure washers and related industrial cleaning applications. Its open enclosure and frame 56 footprint fit typical washer housings, while the 1‑phase 60 Hz power, direct start, and high torque at start‑up support high cleaning throughput with minimal equipment rearrangements.
The EPL1317M aligns with NEMA design code L and carries a CURUSEEV certification context, reflecting recognized safety and performance standards. It also uses an OPEN enclosure design and a steel frame, suitable for use in environments that require robust duty and straightforward compliance with industrial motor guidelines.
Warranty and stock policies are favorable for uptime: the model is listed as active, with stock available at multiple warehouses and a 0‑day lead time in supplier notes. The warranty policy states that products under warranty must be returned, which enables efficient replacement or repair cycles and protects total cost of ownership in ongoing maintenance programs.
