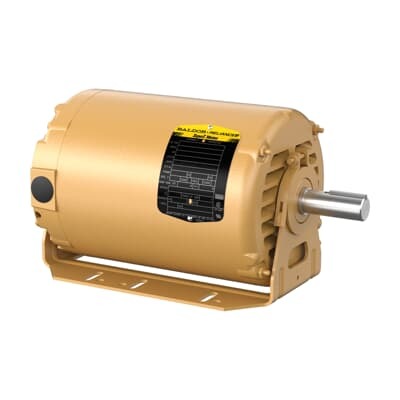

ABB 7BERHM3162TA Fan and Blower - 5HP, 3450RPM, CSA/UR
Part Number: 7BERHM3162TA
Quick Summary
ABB 7BERHM3162TA is a high-efficiency fan and blower motor for continuous cooling and ventilation in industrial equipment. Engineers often contend with undersized or unreliable fans that cause overheating, downtime, and fluctuating process temperatures. This model delivers robust performance across 230/460 V and 60 Hz, rated at 5 HP with a resilient mount for easy installation. It carries CSA, CSA EEV, and UR certifications, supporting safe compliance in critical facilities. With IE1 premium efficiency and a NEMA Design Code A, it reduces energy consumption while maintaining reliable starting characteristics and long service life. The open enclosure and compact 143TY frame enable straightforward retrofit and scalable, cost-efficient cooling performance across multiple applications.
Product Information
Extended Description
7BERHM3162TA ABB: Fan and Blower 5 Hp 230 V (ERHM3162TA)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3450RPM,3PH,60HZ,145TY,3540M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ERHM3162TA
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
35LYJ829: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE1 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
ERHM3162TA
Gross Volume
3496.049 in³
Gross Weight
60 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,3450RPM,3PH,60HZ,145TY,3540M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Fan and Blower, 5 HP, 3600 RPM, Frame Size 143Ty, ResilientMount Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (ERHM3162TA)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
143TY
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
89 %
Product Name
Fan and Blower
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
60 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.2 A | 6.1 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
5 HP, 3600 RPM, Frame Size 143Ty, ResilientMount, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: Dual-voltage capability (230 V / 460 V) and three-phase 60 Hz operation. Business Impact: Simplifies stocking and installation across regional facilities, reducing misapplication risk and enabling quick deployment in mixed electrical environments. Application: Industrial ventilation projects and process cooling where supply volatility exists.Feature: 5 HP rated motor with 3450 r/min, frame 143TY. Business Impact: Delivers strong air movement with compact footprint, enabling higher through-flow in tight housings while minimizing space requirements. Application: Air handling units and blowers in manufacturing lines and packaging plants.Feature: Resilient Mount mounting and OPEN enclosure. Business Impact: Eases installation tolerances and cooling, lowers vibration transmission, and simplifies maintenance access, reducing downtime. Application: Machines requiring robust mounting with accessible service points.Feature: IE1 Premium Efficiency and NEMA Design Code A. Business Impact: Improves energy efficiency, lowers operating costs, and supports regulatory compliance for energy programs. Application: Continuous-duty fans in HVAC, drying, or cooling loops where energy costs are non-trivial.Feature: Regreasable bearings and 1.15 service factor. Business Impact: Extends bearing life, reduces maintenance intervals, and tolerates transient loads without performance loss. Application: High-duty-cycle ventilators in production environments with demanding duty cycles.Feature: 3-phase, direct-on-line (DOL) starting capability. Business Impact: Quick, reliable startup with minimal control complexity, lowering commissioning time. Application: Factory floors, material handling, and process cooling lines that require immediate torque. Feature: Frame and build quality (Steel frame, 143TY). Business Impact: Provides mechanical rigidity for longer life in challenging environments, lowering total cost of ownership. Application: Industrial blowers, air processors, and motor-driven fans in harsh environments.In addition to these capabilities, the motor is designed for compatibility with standard ABB accessories and control strategies, enabling straightforward integration into existing automation architectures. The combined package supports lower total cost of ownership, predictable maintenance planning, and scalable cooling capacity across production lines. This makes it a strong fit for procurement teams looking for a proven, compliant, and efficient cooling solution with industry-standard certifications.
