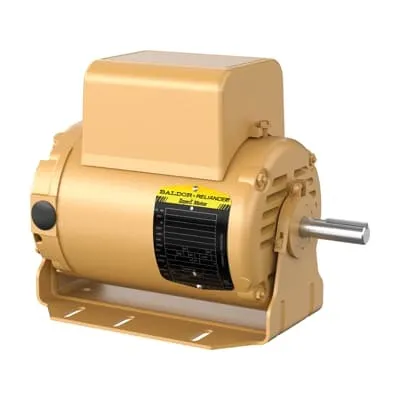

ABB 7BERL1306A Fan and Blower - 1PH 115/230V 60Hz NEMA
Part Number: 7BERL1306A
Quick Summary
7BERL1306A Fan and Blower delivers efficient airflow for small industrial HVAC and control-panel cooling. It addresses the common pain points of space constraints, open enclosure environments, and the need for reliable operation in harsh factory settings. This ABB unit aligns with NEMA standards and UR Energy certification, ensuring safe installation and regulatory compliance across US and global facilities. Designed for a compact footprint, 56-frame size, and 1-phase 60 Hz power, it streamlines procurement and serviceability while delivering predictable performance. By combining open enclosure access with rugged mounting and straightforward Direct On Line starting, this solution reduces maintenance downtime and total cost of ownership for OEMs and industrial end-users.
Product Information
Extended Description
7BERL1306A ABB: Fan and Blower 0.75 Hp 115 V (ERL1306A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,1PH,60HZ,56,3428LC,OP
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ERL1306A
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYG867: Dimension Sheet
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
ERL1306A
Gross Volume
2110.969 in³
Gross Weight
26 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.75HP,3450RPM,1PH,60HZ,56,3428LC,OPEN,F1
Made To Order
No
Medium Description
Fan and Blower, 0.75 HP, 3600 RPM, Frame Size 56, ResilientMount Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (ERL1306A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
95 %
Product Name
Fan and Blower
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
26 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.3 A | 3.3 A
Rated Efficiency
76.20 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56, ResilientMount, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 0.75 HP, 3450 r/min motor in a 56 frame size delivers consistent airflow with a compact footprint, reducing space requirements in control panels and compact blowers while maintaining reliable performance across 115 V and 230 V single-phase supply. This translates to measurable efficiency gains (76.20% rated efficiency) and lower wiring complexity in panel-systems, making it ideal for compact air handling units and panel cooler applications. Feature → Application: Direct On Line starting simplifies installation in new builds and retrofits, eliminating soft-start hardware and reducing start-up time in OEM equipment. Business Impact: faster commissioning, lower upfront integration risk, and improved maintenance predictability in critical cooling loops. Application: control panels, process equipment, and small HVAC units. Feature → Application: Open enclosure design with a 40 °C ambient rating and insulation class B supports easy access for inspection, cleaning, and routine servicing. Business Impact: reduced downtime and simplified compliance checks in harsh factory environments. Application: exposed-air applications and service-heavy installations. Feature → Application: Resilient mounting and horizontal setup (F1) minimize vibration transmission, extending bearing life and reducing component wear. Business Impact: longer service intervals and lower replacement costs in continuous-duty environments. Application: HVAC blowers, air-handling fans, and machinery cooling circuits. Feature → Application: 6203 ball bearings and robust frame construction provide durability under continuous duty. Business Impact: improved reliability and reduced unplanned maintenance for mission-critical cooling. Application: manufacturing lines and equipment enclosures. Feature → Application: Stocked at multiple warehouses with 0-day lead time for rapid deployment. Business Impact: faster time-to-service and enhanced uptime for OEMs and integrators. Application: spare parts strategy and emergency service.
Get a Quick Quote for a ABB 7BERL1306A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BERL1306A?
Enquire Now
FAQs
Yes. The 7BERL1306A supports 115 V and 230 V input at 60 Hz, is a 1-phase motor, and uses a 56 frame size with a horizontal mounting orientation (F1). It’s designed for direct mounting in control panels and compact blowers, enabling straightforward integration.
The unit is a 0.75 HP motor with a rated speed of 3450 r/min. It draws 6.3 A at its nominal settings or 3.3 A under light-load conditions, and operates at 60 Hz with 115/230V single-phase power.
Yes. The ABB 7BERL1306A features an OPEN enclosure suitable for control panels and compact equipment cooling, with a robust mounting system that supports direct mounting in industrial environments while allowing easy service access.
It adheres to NEMA standard requirements and carries UR energy certification, ensuring compliance for US electrical installations and related energy-efficiency considerations across global facilities.
Warranty guidance states that products under warranty must be returned. The unit is stocked at multiple warehouses (including the US and China), enabling rapid fulfillment and minimized downtime for maintenance or new installations.
