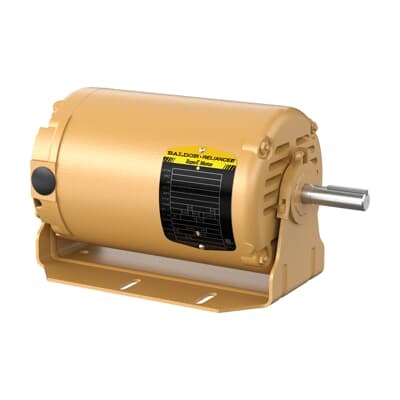

ABB 7BERM3108 Fan and Blower - NEMA B Design
Part Number: 7BERM3108
Quick Summary
ABB 7BERM3108 Fan and Blower delivers compact, reliable cooling for industrial equipment. This 0.5 HP, 3-phase motor runs at 1725 rpm with a 230/460 V rating, designed for OPEN enclosure and resilient-mount installations. For engineers facing space constraints and vibration, this unit provides efficient air movement without compromising reliability. The design adheres to NEMA design B standards, utilizes insulation class B, and supports continuous duty in demanding environments. Stocked across multiple warehouses, it enables fast procurement and minimizes downtime. With strong electrical performance and straightforward installation, this motor reduces total cost of ownership and simplifies maintenance for HVAC, process cooling, and machinery cooling applications.
Product Information
Extended Description
7BERM3108 ABB: Fan and Blower 0.5 Hp 230 V (ERM3108)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,3PH,60HZ,56,3424M,OPEN
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ERM3108
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LY1237: Dimension Sheet
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
ERM3108
Gross Volume
2110.969 in³
Gross Weight
31 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.5HP,1725RPM,3PH,60HZ,56,3424M,OPEN,F1,N
Made To Order
No
Medium Description
Fan and Blower, 0.5 HP, 1800 RPM, Frame Size 56, ResilientMount Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (ERM3108)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
78 %
Product Name
Fan and Blower
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
31 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.6 A | 0.8 A
Rated Efficiency
78.20 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56, ResilientMount, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 0.5 HP, 1725 rpm, 3-Phase motor delivers efficient air movement with moderate current draw, improving cooling efficiency and reducing energy spend in continuous-duty applications. This translates to measurable temperature control improvements in conditioned spaces or equipment housings. Application: industrial fans, blowers, and ventilation assemblies where reliable performance is needed without oversized power requirements. Feature → Voltage flexibility 230/460 V at 60 Hz simplifies electrical design, lowers inventory complexity, and supports retrofits across legacy systems. Business impact: streamlined procurement and reduced wiring changes during installation. Application: HVAC blowers and process cooling equipment with mixed voltage platforms. Feature → OPEN enclosure with Frame 56 and horizontal mounting (F1) provides easy access for maintenance and straightforward retrofits, reducing commissioning time and service outages. Business impact: lower downtime and faster warranty service. Application: retrofit projects in automation cells and packaging lines. Feature → Resilient base mounting and robust steel frame enhance vibration damping and longevity in harsh environments. Business impact: prolonged motor life, reduced maintenance intervals, and lower total cost of ownership. Application: blast cabinets, material handling and dusty industrial atmospheres. Feature → NEMA design B, Insulation Class B, and 1.25 service factor ensure reliable performance under continuous duty and moderate ambient temperatures. Business impact: predictable performance and compliance with standard industrial practices. Application: general purpose fan and blower duties in manufacturing and processing plants. Feature → Stocked at multiple warehouses with 0 day lead time supports rapid fulfillment, improving project schedules and uptime guarantees. Business impact: faster procurement cycles and reduced hold times. Application: OEMs and maintenance teams requiring quick replacement parts.
