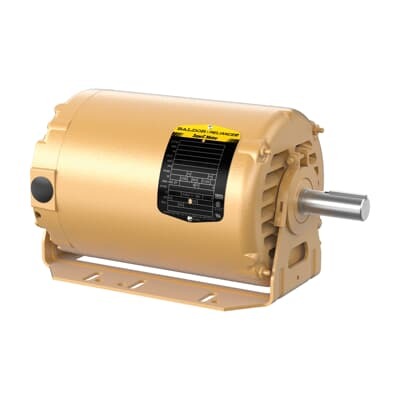

ABB 7BERM3158TA HVAC Motors - 3HP 3450RPM, CSA/UR
Part Number: 7BERM3158TA
Quick Summary
ABB 7BERM3158TA HVAC Motors deliver reliable 3 HP performance for HVAC systems such as air handlers and rooftop units. This design helps engineers avoid procurement delays and compatibility issues by offering 0-day lead time and stock at multiple warehouses. With CSA, CSA EEV, and UR certifications and IE2 premium efficiency, it supports safety compliance and energy-conscious operation. The open enclosure, resilient-mount configuration, and 3-phase, 60 Hz electrical profile provide robust, industry-ready performance for demanding environments. In practice, this motor reduces downtime, simplifies installation, and supports cost-effective lifecycle management for HVAC equipment manufacturers and service teams.
Product Information
Extended Description
7BERM3158TA ABB: HVAC Motors 3 Hp 230 V (ERM3158TA)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,56HZ,3530M,OPE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ERM3158TA
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYJ829: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE2 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
ERM3158TA
Gross Volume
3496.049 inÂł
Gross Weight
48 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,56HZ,3530M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
ResilientMount Mounting, 3 Phase, OPEN Enclosure, (ERM3158TA)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
143TY
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
87 %
Product Name
HVAC Motors
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
48 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.6 A | 3.8 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35J829P988G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
ResilientMount, 3 PH, OPEN,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: 3 HP output with 3450 r/min at 60 Hz. Business Impact: Delivers adequate cooling and airflow performance for standard HVAC packs, reducing the risk of undersized motors and associated inefficiencies. Application: Suitable for air handlers and air-side equipment in commercial buildings. Feature: Open enclosure with resilient mounting and horizontal/F1 orientation. Business Impact: Eases installation and maintenance, minimizes vibration transfer, and allows flexible mounting in constrained spaces. Application: Ideal for retrofit projects and new equipment where serviceability matters. Feature: 3-phase operation at 230 V | 460 V. Business Impact: Simplifies integration with existing electrical systems, reduces wiring complexity, and supports direct-on-line starting to minimize control cabinet complexity. Application: Common in centralized HVAC systems and packaged units. Feature: IE2 Premium Efficiency. Business Impact: Lowers energy consumption, supports regulatory compliance, and shortens payback period through reduced operating costs. Application: Critical for energy-conscious building services and utility-driven projects. Feature: Regreasable bearings and 56 frame with 0.88 in shaft. Business Impact: Prolongs service life, lowers maintenance costs, and improves uptime in harsh environments. Application: Heavy-duty HVAC blowers and compressors in commercial equipment. Feature: Certifications (CSA | CSA EEV | UR) and NEMA B design. Business Impact: Ensures safety, reliability, and eligibility for industrial procurement, while aligning with quality standards. Application: Essential for regulated facilities and projects requiring formal approvals.
