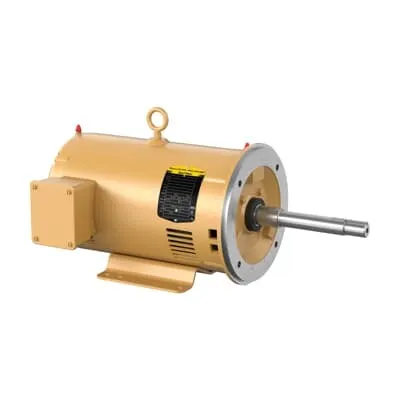

ABB EWCM3212T General Purpose Motor - OPSB Enclosure
Part Number: 7BEWCM3212T
Quick Summary
ABB EWCM3212T General Purpose Motor is designed for reliable 3-phase operation in light industrial applications such as conveyors, pumps, and processing equipment. This motor addresses common sourcing challenges by delivering consistent performance with easy installation and a robust mounting package. Key certifications—CSA, CSA EEV, and UR—back safety and compliance, while Premium Efficiency performance supports energy-conscious operations. With the 182TCZ frame and 60 Hz capability, users gain predictable torque and streamlined integration for scalable automation projects across multiple lines.
Product Information
Extended Description
7BEWCM3212T ABB: General Purpose Motor 5 Hp 230 V (EWCM3212T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3450RPM,3PH,60HZ,182TCZ,3622M,O
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWCM3212T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYJ678: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EWCM3212T
Gross Volume
7192.91 in³
Gross Weight
63 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
5HP,3450RPM,3PH,60HZ,182TCZ,3622M,OPSB,F
Made To Order
No
Medium Description
General Purpose 3PH Open, 5 HP, 3600 RPM, Frame Size 182Tcz, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EWCM3212T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TCZ
Motor Frame Suffix
TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
91 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
63 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12 A | 6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
5 HP, 3600 RPM, Frame Size 182Tcz, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 5 HP rating with 230/460 V 3-phase operation and 60 Hz capability. Business Impact: Flexible regional wiring, reduced stock keeping, and improved energy efficiency due to Premium Efficiency. Application: Suitable for conveyors and pumps in light industrial environments. Feature: Frame 182TCZ with C-Face mounting and foot-mounted base. Business Impact: Easy mechanical integration, precise alignment, and straightforward retrofits in existing equipment. Application: Open-frame motors on conveyors and processing lines.Feature: OPSB enclosure design. Business Impact: Open drip-proof protection for general purpose use with reliable enclosure integrity. Application: Open installations and general machinery in manufacturing settings.Feature: Direct On Line starting. Business Impact: Simplified start-up sequence, lower maintenance requirements, and fast commissioning. Application: Continuous-duty open systems such as fans, pumps, and material handling.Feature: Insulation Class F, 6207 ball bearings, and service factor 1.15. Business Impact: High temperature tolerance, longer bearing life, and overload resilience for demanding cycles. Application: Heavy-use automation lines with varying load profiles. Feature: Efficiency 86.5% and NEMA Design Code A. Business Impact: Lower operating costs and compatibility with standard industrial controls. Application: Energy-sensitive control panels and OEM equipment for scalable automation.
Get a Quick Quote for a ABB 7BEWCM3212T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWCM3212T?
Enquire Now
FAQs
Yes. The EWCM3212T is a 3-phase motor rated for 230 V (and 460 V) operation and uses the OPSB enclosure. It features a C-face flange and foot mounting for straightforward mechanical integration into existing equipment and control panels.
Key specs include 5 HP output, rated speed 3450 r/min at 60 Hz with a synchronous speed of 3600 r/min, insulation class F, efficiency around 86.5%, and a service factor of 1.15. It is designed for continuous duty with direct-on-line starting.
Absolutely. The 182TCZ frame, 182TCZ suffix, and C-face/foot mounting enable easy pulley or coupling integration in conveyors and pump lines. The OPSB enclosure and open design support general purpose open-type machinery common in light industrial automation.
The EWCM3212T includes CSA, CSA EEV, and UR certifications, ensuring safety and regulatory compliance for industrial installations in North America.
With 6207 ball bearings and an insulation class F rating, maintenance intervals extend and long-term reliability improves. The Premium Efficiency rating reduces energy costs, and stock availability with 0-day lead time supports rapid deployment and faster ROI on automation projects.
