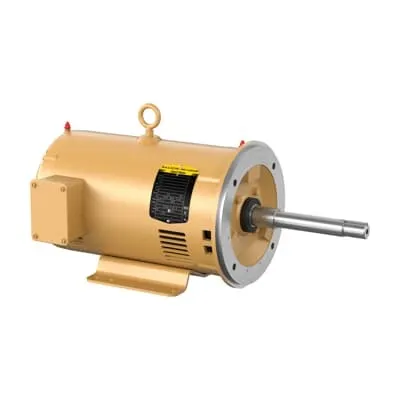

ABB EWCM3219T General Purpose Motor - OPSB Enclosure
Part Number: 7BEWCM3219T
Quick Summary
The ABB EWCM3219T general purpose motor delivers dependable 7.5 HP, 3-phase performance for pumps, fans, and conveyors. Designed to minimize downtime, its rugged OPSB enclosure and solid construction withstand open-plant environments and routine maintenance. It carries CSA, CSA EEV, and UR certifications and aligns with Premium Efficiency, insulation class F, and a 184TCZ frame to meet safety and energy targets. This model supports 230/460 V, 60 Hz operation with direct-on-line starting, simplifying procurement and installation while delivering predictable run-time performance for manufacturing lines.
Product Information
Extended Description
7BEWCM3219T ABB: General Purpose Motor 7.5 Hp 230 V (EWCM3219T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,3PH,60HZ,184TCZ,3632M
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWCM3219T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYH454: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EWCM3219T
Gross Volume
7192.91 in³
Gross Weight
77 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,3450RPM,3PH,60HZ,184TCZ,3632M,OPSB
Made To Order
No
Medium Description
General Purpose 3PH Open, 7.5 HP, 3600 RPM, Frame Size 184Tcz, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EWCM3219T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TCZ
Motor Frame Suffix
TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
89 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
77 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.2 A | 8.6 A
Rated Efficiency
88.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
7.5 HP, 3600 RPM, Frame Size 184Tcz, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
OPSB enclosure protects windings and bearings in dusty, harsh environments, reducing maintenance calls and downstream downtime. This enhances uptime for conveyors and process lines and simplifies integration with existing guards and ducting. The 184TCZ frame with C-face drive end and foot mounting enables straightforward installation and quick alignment with standard belts and pulleys, minimizing commissioning effort. Dual voltage 230/460 V at 60 Hz offers flexibility for global procurement and supply chain resilience, while direct-on-line start reduces drive hardware complexity and start-up time. Premium efficiency (NEMA 12-12) and insulation class F lower energy costs and heat generation in continuous duty, boosting plant reliability and long-term operating cost savings. The 1.15 service factor supports short overloads without derating, improving system resilience in peak loads. With a 0-day lead time and broad warehouse stocking, project schedules stay on track and spare parts are readily available for maintenance. The motor’s 0.88 in shaft diameter and 16.25 in height complement standard coupling and alignment practices, reducing custom fabrication needs in retrofit projects. The 184TCZ frame, 77 lb weight, and 3-phase, 3450 r/min performance create a favorable balance between torque, speed, and thermal management for general automation tasks.
