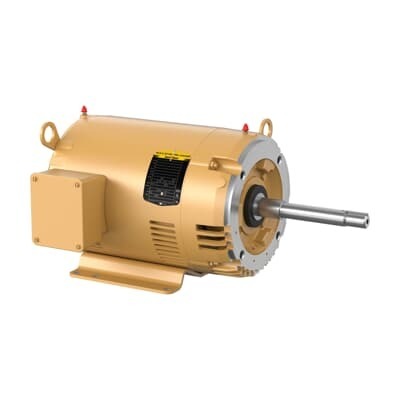

ABB 7BEWCM3312T General Purpose Motor - 10HP OPSB 230/460V
Part Number: 7BEWCM3312T
Quick Summary
ABB 7BEWCM3312T General purpose motor provides reliable 10 HP performance for 3-phase open-drive applications in manufacturing lines, conveyors, and pumps. Engineers often face downtime, voltage mismatches, and lengthy lead times when upgrading motors, which hampers project timelines and overall efficiency. This model carries CSA, CSA EEV, and UR certifications, and aligns with NEMA design standards to support North American regulatory compliance. With an OPSB enclosure and dual voltage options (230/460 V), it enables quick integration with existing controls and power systems. In addition, its premium efficiency rating helps reduce operating costs, while multi-warehouse stocking reduces procurement risk and accelerates maintenance cycles for industrial facilities.
Product Information
Extended Description
7BEWCM3312T ABB: General Purpose Motor 10 Hp 230 V (EWCM3312T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3500RPM,3PH,60HZ,213TCZ,3728M,
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWCM3312T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYF978: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EWCM3312T
Gross Volume
7561.383 in³
Gross Weight
121 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
10HP,3500RPM,3PH,60HZ,213TCZ,3728M,OPSB
Made To Order
No
Medium Description
General Purpose 3PH Open, 10 HP, 3600 RPM, Frame Size 213Tcz, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EWCM3312T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TCZ
Motor Frame Suffix
TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
121 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24 A | 12 A
Rated Efficiency
90.20 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
10 HP, 3600 RPM, Frame Size 213Tcz, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 213TCZ frame size and C-face mounting deliver a compact yet rugged footprint, enabling straightforward retrofits and space-constrained installations in conveyors and fans. This translates to shorter install times, reduced machine downtime, and easier alignment with existing couplings and belts. Feature → Business Impact → Application: Premium efficiency (NEMA 12-12) reduces energy consumption and heat generation, resulting in lower utility costs and cooler operating environments in continuous-duty applications. Feature → Business Impact → Application: OPSB enclosure provides robust protection in general-purpose open motor environments, improving reliability in manufacturing floors and packaging lines while enabling longer service intervals and lower maintenance costs. Feature → Business Impact → Application: Direct On Line starting and 60 Hz operation with 230/460 V dual voltage support simplify wiring schemes and control integration, boosting start-up reliability and enabling seamless upgrades across multiple production lines. Feature → Business Impact → Application: 3-phase, 10 HP output with a 1.15 service factor offers dependable torque for mid-load processes such as conveyors, pumps, and blowers, reducing slowdowns during peak demand. Feature → Business Impact → Application: CSA, CSA EEV, UR certifications plus NEMA compliance reduce regulatory risk for regulated industries and facilitate approval processes in North American facilities. Feature → Business Impact → Application: Stocked at multiple warehouses with minimal lead times lowers project risk and accelerates commissioning for maintenance outages and new line installations. Language and terminology are tailored for industrial buyers, highlighting compatibility with 230/460 V systems, 60 Hz service, and 213TCZ frame sizing to support precise specification matching across procurement channels.
