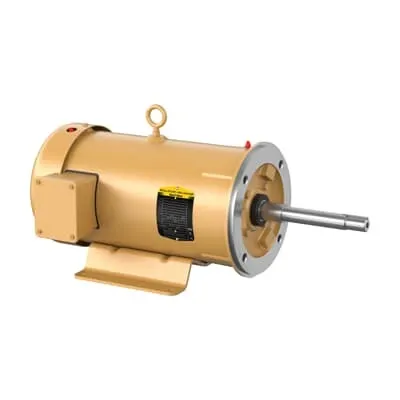

ABB 7BEWCM3709T General Purpose Motor - CSA EEV UR
Part Number: 7BEWCM3709T
Quick Summary
ABB 7BEWCM3709T is a general purpose three-phase motor designed for conveyors and pumps in light manufacturing. It addresses downtime caused by voltage mismatches, supply variability, and lengthy procurement cycles by offering a US-made, in-stock solution with 0-day lead time. The unit carries CSA, CSA EEV, and UR certifications to support regulatory compliance and safe operation across North American facilities. With Premium Efficiency and TEFC enclosure, it delivers energy savings and reliable performance, while a 213TCZ frame and C-face mounting simplify installation and interchangeability for OEMs and distributors. Stocked at multiple warehouses, it helps shorten project schedules and improve maintenance planning.
Product Information
Extended Description
7BEWCM3709T ABB: General Purpose Motor 7.5 Hp 230 V (EWCM3709T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,3PH,60HZ,213TCZ,3646M
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWCM3709T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYN536: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EWCM3709T
Gross Volume
8416.408 in³
Gross Weight
96 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,3450RPM,3PH,60HZ,213TCZ,3646M,TEFC
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 7.5 HP, 3600 RPM, Frame Size 213Tcz, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWCM3
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TCZ
Motor Frame Suffix
TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
79 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
96 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.4 A | 9.7 A
Rated Efficiency
89.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
7.5 HP, 3600 RPM, Frame Size 213Tcz, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 7.5 HP, 230/460V operation at 60 Hz, 3-phase. Business Impact: Delivers robust torque for common load profiles with efficient, reliable performance, reducing energy waste and thermal stress. Application: ideal for pumps, conveyors, and fans in packaging lines and light assembly. Feature: TEFC enclosure with 213TCZ frame. Business Impact: Provides rugged protection in cleanroom-adjacent or dusty factory floors, lowering maintenance frequency and extending motor life. Application: suitable for harsh manufacturing environments and general purpose duty. Feature: C-face mounting and foot-mount base. Business Impact: Enables fast retrofit and versatile installation, minimizing downtime during line upgrades. Application: OEM equipment and retrofit projects with limited space. Feature: Premium Efficiency rating and insulation class F. Business Impact: Reduces operating current, lower energy costs, and improved thermal performance under continuous operation. Application: long-running processes like mixing, conveying, and aeration. Feature: Bearing arrangement (6307 and 6205 Ball) and service factor 1.15. Business Impact: Longer bearing life and higher torque reserve for transient loads, enhancing machine reliability. Application: drives with start-stop cycles or peak loading. Feature: Stock availability and zero-day lead time. Business Impact: Shortens project timelines, improves maintenance planning, and reduces inventory risk. Application: OEMs and distributors requiring rapid deployment and consistent supply.
