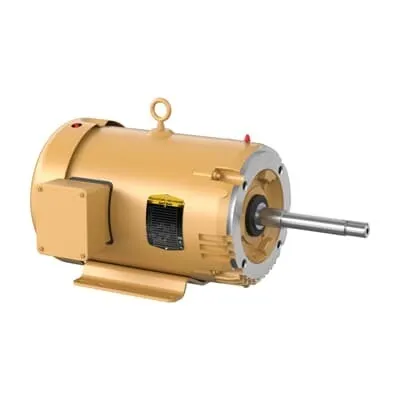

ABB EWCM3713T General Purpose Motor - 15HP TEFC 60Hz
Part Number: 7BEWCM3713T
Quick Summary
ABB EWCM3713T General Purpose 3-phase motor delivers reliable 15 HP performance for demanding industrial drive applications. This 230/460 V TEFC motor is well suited for conveyors, pumps, and fans where uptime and efficiency matter. Common challenges—long lead times, inconsistent torque, and maintenance costs—are mitigated by stock availability and a rugged US-origin design. The unit carries CSA, CSA EEV, and UR certifications, aligning with safety and regulatory requirements across North American facilities, while remaining compatible with NEMA standards. With Premium Efficiency performance, it reduces energy consumption on continuous-duty lines, and the C-face mounting plus 215TCZ frame simplify installation and retrofits, delivering measurable value for OEMs and end-users alike.
Product Information
Extended Description
7BEWCM3713T ABB: General Purpose Motor 15 Hp 230 V (EWCM3713T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3500RPM,3PH,60HZ,215TCZ,3752M,
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWCM3713T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN046: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EWCM3713T
Gross Volume
7561.383 in³
Gross Weight
169 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
15HP,3500RPM,3PH,60HZ,215TCZ,3752M,TEFC
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 15 HP, 3600 RPM, Frame Size 215Tcz, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWCM37
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TCZ
Motor Frame Suffix
TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
89 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
169 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
34 A | 17 A
Rated Efficiency
91 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
15 HP, 3600 RPM, Frame Size 215Tcz, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 15 HP output with 3500 r/min rated speed and 2-pole design. Business Impact: Delivers sufficient torque for medium-load drives while maintaining compact footprint, enabling reliable operation of conveyors and pumps. Application: Ideal for material handling lines in manufacturing and packaging equipment, where consistent start-stop performance matters. Long-tail keywords: 15 HP motor, 3500 r/min, 2P motor, 3PH. Feature: TEFC (Totally Enclosed Fan Cenced) enclosure. Business Impact: Protects windings from dust, moisture, and wash-down environments, reducing maintenance and extending service life. Application: Suitable for harsh factory floors, packaging lines, and outdoor installations with ambient temperatures around 40 °C. Long-tail keywords: TEFC motor, sealed enclosure, rugged industrial motor. Feature: Dual voltage capability 230 V / 460 V. Business Impact: Simplifies wiring changes and retrofit projects, reducing install time and wiring errors. Application: Retrofit upgrades in existing plants and OEM equipment designed for flexible power supply. Long-tail keywords: dual voltage motor, 230/460V, scalable drive compatibility. Feature: Premium efficiency (91%) with PF 89%. Business Impact: Lowers energy cost and heat generation, improving overall system efficiency and reducing cooling load in continuous operation. Application: Pumps, fans, and conveyors that run at constant duty in manufacturing warehouses or process lines. Long-tail keywords: premium efficiency motor, energy savings, high PF. Feature: Frame 215TCZ, C-face mounting, foot-mounted orientation. Business Impact: Eases installation and preserves alignment with existing mechanical bases, reducing downtime during replacement or retrofits. Application: OEM equipment and modernization projects requiring straightforward mounting and compatibility with standard bases. Long-tail keywords: 215TCZ frame, C-face, foot-mounted motor. Feature: Direct On Line starting and continuous duty (Synchronous 3600 r/min, Rated Speed 3500 r/min). Business Impact: Quick, simple startup with robust performance characteristics, minimizing inrush management concerns. Application: Industrial drives with high cycle frequency and minimal control complexity. Long-tail keywords: DOL start, continuous duty motor, 3PH drive.
