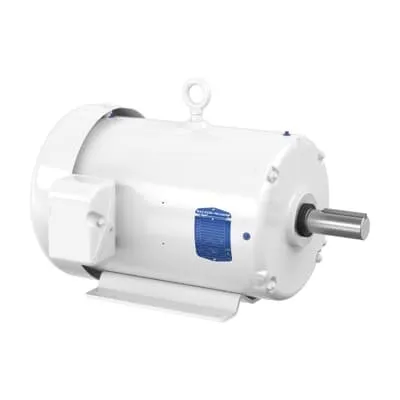

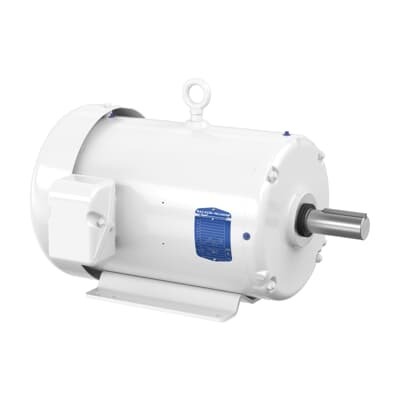

ABB 7BEWDM23934T Washdown Motor - 20 HP, 60 Hz, TEFC
Part Number: 7BEWDM23934T
Quick Summary
ABB 7BEWDM23934T washdown motor delivers 20 HP for demanding food processing and packaging lines. When washdown environments threaten reliability, engineers need a rugged, compliant solution that minimizes downtime. This motor features premium efficiency (IE3), a TEFC enclosure, and CSA/UR certification to meet strict industrial and regulatory requirements. With dual voltage options of 230/460 V and a 256T frame, it fits a wide range of standard drives and replacement programs. The robust bearings, sealed construction, and clean-in-place compatibility translate to lower maintenance costs and longer service life in high-scrub environments. Businesses benefit from improved uptime, energy savings, and easy integration into existing motor pools.
Product Information
Extended Description
7BEWDM23934T ABB: Washdown Motor 20 Hp 230 V (EWDM23934T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1765RPM,3PH,60HZ,256T,3952M,TE
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM23934T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYJ010: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EWDM23934T
Gross Volume
9651.933 in³
Gross Weight
122.016 kg
Horsepower Rating UL/CSA
20.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
20HP,1765RPM,3PH,60HZ,256T,3952M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 20 HP, 1800 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM23934T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
84 %
Product Name
White Washdown
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
122.016 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
48 A | 24 A
Rated Efficiency
93 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 1800 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure with a 256T frame protects the motor in high-pressure washdown zones. Business Impact: Reduces water ingress and corrosion, cutting maintenance cycles and extending service life. Application: Ideal for food and beverage lines, packaging equipment, and sanitary conveyors where frequent washdowns occur. Feature: 20 HP output at 1765 r/min on 60 Hz with dual voltage 230/460 V. Business Impact: Provides flexible installation with common plant voltages, simplifying spare parts and lowering stocking complexity. Application: Replacement in existing systems and new builds that run on standard plant distribution. Feature: IE3 Premium Efficiency rating with NEMA Design Code A. Business Impact: Lowers energy costs and supports regulatory compliance, driving a faster return on investment over the motor’s life. Application: Continuous-duty processes where energy intensity matters, such as conveyors and mixers. Feature: Direct On Line starting and a robust service factor. Business Impact: Reduces starter equipment needs and simplifies electrical design, delivering quicker ramp-up and lower initial capital expenditure. Application: Production lines with frequent start/stop cycles. Feature: Mechanical robustness: shaft diameter 1.63 in, bearing set (6309 | Ball, 6208 | Ball), ambient 40 °C. Business Impact: Ensures reliable coupling and long bearing life in harsh environments; supports easy maintenance planning and operational uptime. Application: Heavy-duty washdown lines and equipment subjected to frequent cleaning and high-duty cycles.
