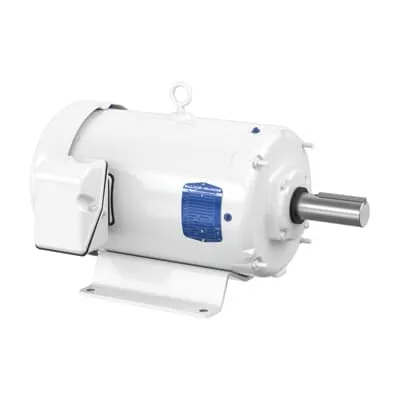

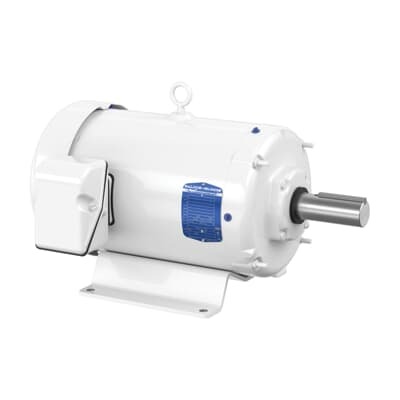

ABB EWDM23994T Washdown Motor - 15 HP, TEFC Enclosed
Part Number: 7BEWDM23994T
Quick Summary
ABB EWDM23994T Washdown Motor powers hygienic process lines across food & beverage, pharmaceutical, and cleanroom operations. When environments demand thorough sanitation, equipment must withstand frequent washdowns without compromising performance. This model delivers 15 HP at 230/460 V with a TEFC enclosure and a robust 254T frame, designed for continuous duty at 60 Hz. Its certification package—CSA, CSA EEV, and UR—supports regulatory compliance while reducing audit risk. The motor’s premium efficiency rating further lowers energy costs in high-cycle applications. With easy installation, standard mounting, and readily available spare parts through ABB’s Baldor-Reliance lineage, you gain reliable operation and faster maintenance across your production lines.
Product Information
Extended Description
7BEWDM23994T ABB: Washdown Motor 15 Hp 230 V (EWDM23994T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3450RPM,3PH,60HZ,254T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM23994T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LY-000-114: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EWDM23994T
Gross Volume
7561.383 in³
Gross Weight
169 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
15HP,3450RPM,3PH,60HZ,254T,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 15 HP, 3600 RPM, Frame Size 254T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM23994T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
98 %
Product Name
White Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
169 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
30.6 A | 15.3 A
Rated Efficiency
91 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
15 HP, 3600 RPM, Frame Size 254T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
The TEFC enclosure on the EWDM23994T delivers washdown-ready protection, extending motor life in harsh cleaning cycles and wet environments, which translates to lower maintenance intervals and reduced downtime in food processing or pharmaceutical lines. Direct On Line starting simplifies electrical design and minimizes start-up time, enabling faster conveyor ramps and smoother production throughput. With a 254T frame and foot-mounted, horizontal F1 mounting, installation is straightforward on existing equipment, reducing retrofit complexity and supporting flexible line layouts. The motor’s 15 HP, 3-phase, 60 Hz rating and 230/460 V dual voltage capability provide reliable performance across multiple plants, while the premium efficiency (91%) lowers energy consumption and operating costs over the motor’s life. Robust bearings (6309 and 6206 NDE) and insulation class F support long-term reliability in warm washdown zones, helping facilities meet energy and safety targets. In addition, the NEMA design code A and continuous-duty rating reassure engineers designing demanding process equipment, conveyors, and mixers with predictable performance.
