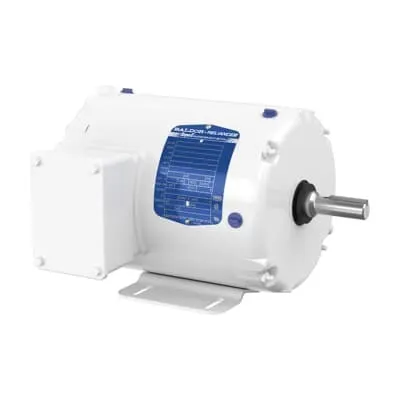

ABB EWDM3546 Washdown Motor - Premium Efficiency
Part Number: 7BEWDM3546
Quick Summary
ABB EWDM3546 Washdown Motor delivers reliable 1 HP, 230 V operation for hygienic, washdown environments such as food and beverage lines and pharmaceutical processing. When uptime is critical, choosing a rugged, washdown-ready motor reduces CIP-related downtime and maintenance costs. This model carries CSA, CSA EEV, and UR certifications with a TE V(N) enclosure and NEMA design code B, supporting continuous operation in harsh environments. With a 3-phase 60 Hz supply, frame size 56, and 1770 rpm nominal speed, it offers predictable performance. The motor is stocked in multiple warehouses for rapid fulfillment, and its 230/460 V compatibility and standard foot-mounted mounting simplify installation, keeping total cost of ownership low.
Product Information
Extended Description
7BEWDM3546 ABB: Washdown Motor 1 Hp 230 V (EWDM3546)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,56,3522M,TENV,
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM3546
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE2680: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EWDM3546
Gross Volume
3496.049 in³
Gross Weight
39 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,56,3522M,TENV,F1,N
Made To Order
No
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (EWDM3546)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
39 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 1 HP washdown motor with 230/460 V, 60 Hz, 3-phase output provides flexible power options for conveyors and mixers, reducing wiring complexity and inventory variety while enabling quick deployment in process lines. This premium efficiency motor lowers operating costs over the life of the equipment, improving energy savings and reducing heat load in tight manufacturing spaces, ideal for high-cycle packaging and clean-in-place systems. The TE(N)V enclosure type delivers corrosion and washdown resistance, helping maintain performance in wet environments and extending bearing life for dairy, beverage, and meat processing lines. With frame size 56 and foot-mounted mounting, installation is straightforward on existing bases and carts, cutting installation time and ensuring alignment with standardized plant footprints. Direct On Line starting simplifies control schemes, reducing soft-start hardware needs and maintenance while supporting reliable start-up in 3-phase power networks. Stocking at multiple warehouses (US and China) enables faster procurement, reducing lead times and securing uptime for capital projects and expansion investments. Certifications (CSA, CSA EEV, UR) provide compliance assurance across regulated facilities, mitigating supplier risk and simplifying audit preparation. Industry context notes include typical duty cycle for continuous operation and the importance of premium efficiency ratings to meet energy reduction targets in modern facilities.
