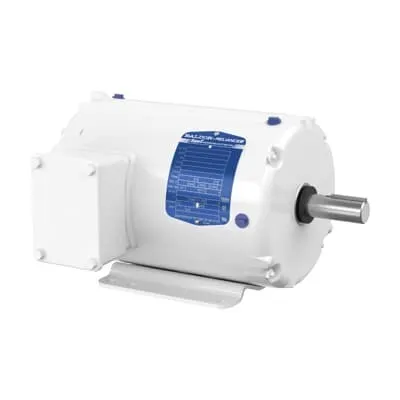

ABB EWDM3546T Washdown Motor - CSA/UR Certified
Part Number: 7BEWDM3546T
Quick Summary
ABB EWDM3546T washdown motor is a compact, 1 HP, 230 V three-phase solution designed for demanding wet environments across food processing, packaging lines, and general industrial runs. It withstands washdown cycles, resists corrosion, and helps maintain uptime in sanitary zones. With a TENV enclosure and premium efficiency performance, it lowers energy costs while meeting strict standards. Certified to CSA, CSA EEV, and UR, the design supports regulatory compliance and safe operation in regulated facilities. By combining robust engineering with easy installation features and strong stock availability, this motor shortens procurement cycles and reduces total cost of ownership for your plant.
Product Information
Extended Description
7BEWDM3546T ABB: Washdown Motor 1 Hp 230 V (EWDM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143T,3522M,TEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM3546T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYSS584: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
EWDM3546T
Gross Volume
2110.969 in³
Gross Weight
39 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,143T,3522M,TENV,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 143T, Standard Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (EWDM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
39 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143T, Standard, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Feature: 1 HP, 230/460 V three-phase design standardizes motor selection across line equipment, reducing spare parts variety and simplifying drive coordination. Business Impact: Predictable performance with consistent control signals, improving reliability on conveyors and mixers. Application: Suitable for food processing lines and general industrial conveyors. Feature: Premium Efficiency (NEMA 12-12) performance lowers operating costs and reduces heat load in high-cycle applications. Business Impact: Lower energy consumption and cooler drive environments extend equipment life and minimize cooling requirements. Application: Continuous operation in packaging and bottling lines where energy costs are a concern. Feature: TENV enclosure protects windings against washdown exposure and corrosive cleaning agents. Business Impact: Enhanced reliability and reduced maintenance in sanitary environments. Application: Dairy, beverage, and meat processing equipment where frequent cleaning is required. Feature: Frame 143T, Foot Mounted, F1 mounting with standard drive end flange enables rapid installation and straightforward alignment. Business Impact: Shorter installation times and easier replacement, reducing downtime during line changes. Application: Horizontal mounting on conveyors and processing equipment. Feature: Lubrication For life and Direct On Line starting simplify service needs and energy management. Business Impact: Lower maintenance costs and minimal start-up components without complex controls. Application: Long-term automated lines with minimal on-site servicing. Feature: Certifications CSA, CSA EEV, UR support compliance for regulated facilities. Business Impact: Helps meet industry standards and third-party audits, reducing risk of non-compliance. Application: Food, beverage, and pharma environments requiring stringent certification. Feature: Stocked at multiple warehouses with 0 day lead time improves supply chain resilience. Business Impact: Fast procurement and reduced project delays. Application: Just-in-time manufacturing and rapid plant modernization.
Get a Quick Quote for a ABB 7BEWDM3546T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWDM3546T?
Enquire Now
FAQs
Yes. The EWDM3546T is a 3-phase motor rated for 230 V (with 460 V option) and features a foot-mounted, F1 mounting arrangement for straightforward installation and easy mounting alignment on conveyors and processing equipment.
Key specs include 1 HP rating, 1770 r/min nominal speed, 60 Hz, 3 phases, 143T frame, shaft diameter 0.88 in, and a 230/460 V voltage code. It uses a direct-on-line start and a life-lubricated bearing system.
Yes. The White Washdown design with a TENV enclosure is specifically intended for washdown environments, delivering reliable operation in sanitary facilities while maintaining efficiency and ease of cleaning.
The motor carries CSA, CSA EEV, and UR certifications. These approvals support regulatory compliance, safer operation, and easier qualification for regulated industries like food and pharmaceuticals.
With life-long lubrication and high-efficiency performance, maintenance requirements are minimized and energy costs reduced. Combined with rapid stocking and short lead times, this translates to faster project ROI and lower total cost of ownership.
