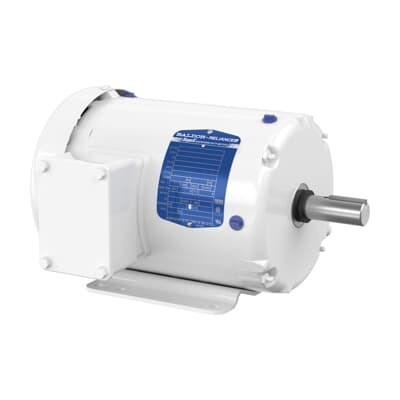

ABB EWDM3556T Washdown Motor - Premium Efficiency TEFC
Part Number: 7BEWDM3556T
Quick Summary
ABB EWDM3556T washdown motor delivers 1 HP performance for sanitary manufacturing lines. If uptime and washdown reliability matter, this motor minimizes corrosion risk and maintenance downtime in demanding environments. It features CSA, UR, and CSA EEV certifications to support compliant operation in regulated facilities. With 230/460 V and 3-phase power, a 145T frame, and horizontal foot mounting, it integrates into standard equipment setups while delivering measurable lifecycle value for food & beverage, pharma, and packaging lines.
Product Information
Extended Description
7BEWDM3556T ABB: Washdown Motor 1 Hp 230 V (EWDM3556T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1//.75HP,1155//970RPM,3PH,60//50HZ,
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM3556T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYS585: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EWDM3556T
Gross Volume
3496.049 inÂł
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
1//.75HP,1155//970RPM,3PH,60//50HZ,145T
Made To Order
No
Medium Description
White Washdown, 1 HP, 1200 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM3556T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
64 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.6 A | 1.8 A
Rated Efficiency
82.50 %
Rated Speed
1155 r/min
Replaced Product ID (OLD)
7B35S585G019
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1 HP, 1200 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Premium Efficiency and TEFC enclosure provide energy savings and robust protection against washdown spray, reducing operating costs and extending motor life in sanitary environments. This directly translates to lower energy bills and fewer maintenance interruptions on continuous-process lines such as conveyors and mixers in food processing. The 145T foot-mounted frame offers straightforward installation and compatibility with existing equipment footprints, enabling rapid machine upgrades without expensive rework. Three-phase 60 Hz operation at 230/460 V gives plant-wide electrical flexibility, simplifying fleet alignment and spare part management. Durable bearings (6205/6203 Ball) and insulation class F support long service life in humid conditions, minimizing unplanned downtime during high-pressure cleaning. Direct-on-line starting and a 1 HP rating deliver reliable torque for frequent starts and stops in packaging and mixing applications. Stocking at multiple warehouses and 0-day lead times help maintenance teams plan replacements with minimal production impact.
Get a Quick Quote for a ABB 7BEWDM3556T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWDM3556T?
Enquire Now
FAQs
The EWDM3556T operates on 230 V or 460 V supplied as 3-phase power at 60 Hz. This flexible voltage range simplifies integration into existing plant electrical systems and minimizes the need for additional transformers or drive alterations in most sanitary manufacturing lines.
Yes. The White Washdown product uses a TEFC enclosure and is rated for sanitary applications, delivering corrosion resistance and reliable performance under frequent washdowns. With 1 HP at 1155 r/min and a 145T frame, it supports continuous operation on conveyors, mixers, and packaging equipment.
This motor carries CSA, CSA EEV, and UR certifications, reinforcing electrical safety and compliance for regulated facilities. These approvals help simplify procurement for food, pharma, and consumer goods customers by meeting industry safety standards and ensuring traceability with qualified components.
The EWDM3556T is foot-mounted with a horizontal mounting orientation, designed for easy bolting to standard bases or equipment frames. The 145T frame size aligns with common conveyor and pump assemblies, enabling rapid retrofits and minimal downtime during installation.
Premium Efficiency reduces energy consumption compared with standard-efficiency motors, contributing to noticeable annual energy savings on extended-running lines. When paired with appropriate drive strategies and load profiles in continuous processes, facilities typically experience lower electricity costs and a favorable payback period without compromising torque, speed, or reliability.
