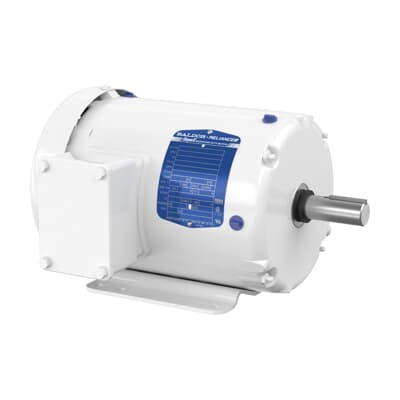

ABB EWDM3558T Washdown Motor - TEFC 60 Hz Premium Efficiency
Part Number: 7BEWDM3558T
Quick Summary
ABB EWDM3558T Washdown Motor is a robust 2 HP, 230/460 V three-phase TEFC motor designed for harsh washdown environments. It delivers reliable performance in food & beverage, packaging, and processing lines where frequent cleaning and high hygienic standards are required. This model addresses common industry pains such as corrosion, downtime, and energy waste with its premium efficiency and durable frame. Built to meet NEMA B design expectations, it combines energy savings with long bearing life. Stocked across US warehouses with zero lead time, it supports fast procurement and accelerated production timelines, helping manufacturers realize lower total cost of ownership and quicker line upgrades.
Product Information
Extended Description
7BEWDM3558T ABB: Washdown Motor 2 Hp 230 V (EWDM3558T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,143T,3528M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM3558T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYSS585: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EWDM3558T
Gross Volume
3496.049 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,143T,3528M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 2 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM3558T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
46 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: Frame Size 145T with Foot Mounted base → Business Impact: Simplified installation and standardized mounting in conveyors, mixers, or pump skids. Application: Ready-to-install for inline equipment in production lines. Long-tail keywords integrated: 145T motor, foot mounted, easy installation. Feature: TEFC Enclosure with White Washdown finish → Business Impact: Durable, corrosion-resistant housing suitable for washdown zones and chemical exposure, reducing maintenance frequency. Application: Food processing, dairies, and pharmaceutical packaging. Feature: 60 Hz, 1760 r/min, 4-pole, 3-phase drive → Business Impact: Consistent speed control across standard US power grids, enabling predictable torque and start-up sequences. Application: Material handling, pumps, and fan applications. Feature: 2 HP, 230/460 V voltage range → Business Impact: Global compatibility reduces spare-part complexity and inventory needs. Application: Multi-site operations with mixed-voltage facilities. Feature: Premium Efficiency (NEMA 12-12) → Business Impact: Lower energy costs and cooler operation, extending motor life. Application: Continuous-duty lines with high run-time hours. Feature: Bearings 6205/Ball and 6203/Ball → Business Impact: Reliable startup and reduced maintenance due to robust bearing design. Application: High-humidity environments and spray-down routines. Feature: NEMA Design Code B, 60 Hz alignment → Business Impact: Predictable performance, easier maintenance planning, and standard replacement parts. Application: General purpose, continuous duty operations. Feature: Synchronous speed 1800 r/min and Rated Speed 1760 r/min → Business Impact: Sweet-spot for belt drives and pulleys with minimal speed variance. Application: Packaging and conveying lines where precise RPM is critical. Feature: Mounting Position F1, Shaft Ø 0.88 in → Business Impact: Compatible couplings and drive systems, reducing installation time. Application: Direct-drive and belt-driven equipment. Overall, these features translate to measurable outcomes: reduced downtime, lower energy consumption, faster installations, and improved compliance with washdown hygiene standards in demanding industrial settings.
