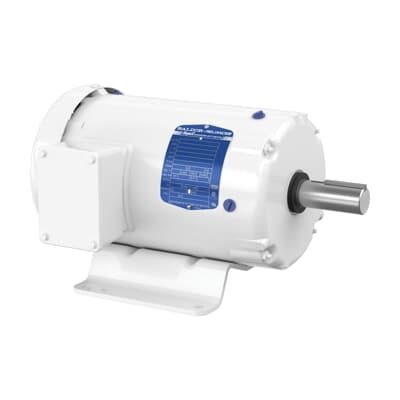

ABB 7BEWDM3610T Washdown Motor - Premium Efficiency
Part Number: 7BEWDM3610T
Quick Summary
ABB 7BEWDM3610T is a washdown motor engineered for demanding industrial environments such as food & beverage, packaging lines, and process equipment. This 3 HP motor operates at 60 Hz with dual voltage capability (230 V | 460 V), delivering reliable power while withstanding washdown cycles. For engineers, the challenge is maintaining uptime under harsh cleaning regimes; this model mitigates that risk with a TEFC enclosure, steel frame, and a footprint aligned to 182T standards. Certified for CSA, CSA EEV, and UR, it aligns with stringent regulatory and energy-efficiency requirements. The combination of stock availability across multiple warehouses and a straightforward, direct-on-line start supports faster procurement, predictable maintenance planning, and improved project ROI for OEMs and end users.
Product Information
Extended Description
7BEWDM3610T ABB: Washdown Motor 3 Hp 230 V (EWDM3610T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM3610T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LY-000-240: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EWDM3610T
Gross Volume
5274.135 inÂł
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182T,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 3600 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM3610T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
50 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 3600 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Dual voltage 230 V / 460 V with 60 Hz input. Business Impact: Simplifies stocking, reduces part diversity, and lowers installation complexity across mixed-voltage facilities. Application: Conveyor belts and packaging equipment that migrate between regional power standards. Feature: TEFC enclosure with a steel frame (182T) and Foot Mounted configuration. Business Impact: Enhanced washdown resistance and robust mounting during operation, decreasing downtime in sanitary environments. Application: Food processing lines and sanitary process equipment. Feature: Premium Efficiency (PF ~92%) with Insulation Class F. Business Impact: Energy cost reduction and cooler, more reliable performance under continuous duty. Application: High-cycle duty motors in continuous production environments. Feature: 3-Phase, 3 HP output with Direct On Line start. Business Impact: Simple control scheme, lower initial drive costs, faster start-up, and improved line throughput. Application: High-load start conditions on packaging and processing machinery. Feature: 182T frame, 1.13 in shaft diameter, and 50 lb weight. Business Impact: Industry-standard compatibility with common bases and easier replacement or retrofits. Application: OEM replacement projects and aftermarket maintenance. Feature: Certifications CSA | CSA EEV | UR and US origin with 0 day lead time. Business Impact: Verified compliance and accelerated procurement, reducing project lead times. Application: Global manufacturing and distribution environments with strict regulatory needs.
