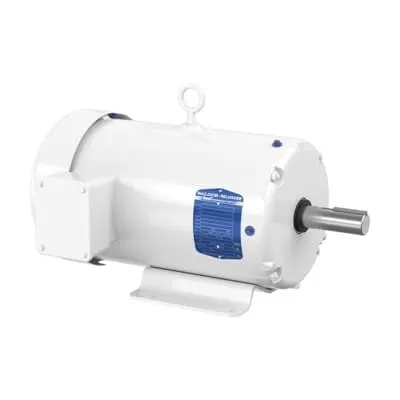

ABB EWDM3618T Washdown Motor - 1.5HP, TEFC, CSA EEV UR
Part Number: 7BEWDM3618T
Quick Summary
Washdown motor is built for rugged, hygienic operation in wet environments such as food processing, beverage lines, and clean-in-place systems. The ABB EWDM3618T delivers reliable 1.5 HP performance at 60 Hz with a TEFC enclosure, suitable for 230/460 V, 3-phase installations. This design addresses common washdown challenges by providing corrosion resistance, direct-on-line start, and robust bearings in a compact 184T frame. With certifications including CSA, CSA EEV, and UR, it supports global compliance while delivering consistent uptime. In high-demand facilities, this motor translates to lower energy waste and easier maintenance, helping you meet throughput targets and reduce total cost of ownership.
Product Information
Extended Description
7BEWDM3618T ABB: Washdown Motor 1.5 Hp 230 V (EWDM3618T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,855RPM,3PH,60HZ,184T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM3618T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYK186: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EWDM3618T
Gross Volume
7192.91 in³
Gross Weight
95 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,855RPM,3PH,60HZ,184T,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 1.5 HP, 900 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM3618T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
61 %
Product Name
White Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
95 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6 A | 3 A
Rated Efficiency
78.50 %
Rated Speed
855 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
1.5 HP, 900 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The EWDM3618T uses a TEFC enclosure and washdown-ready construction, which protects internal components from cleaning chemicals and high-pressure spray. This reduces gasket failures and corrosion-related downtime, enabling installation in food processing lines and packaging systems that require frequent cleaning. Feature → Business Impact → Application: The 1.5 HP, 855 rpm output on a standard 184T frame delivers steady torque for conveyors, pumps, and fans, with a direct-on-line startup that minimizes control complexity and startup time. This is especially advantageous in packaging lines where rapid motor engagement improves line efficiency and reduces cycle times. Feature → Business Impact → Application: Dual voltage capability (230 V / 460 V) at 60 Hz provides installation flexibility across facilities, enabling a single SKU to support multiple plant locations and reduce inventory costs. Feature → Business Impact → Application: Premium Efficiency designation (NEMA 12-12) lowers energy bills and heat generation, improving overall plant reliability and reducing cooling load in machinery rooms. Feature → Business Impact → Application: The 6206 and 6205 ball bearings combined with a standard drive end flange (Standard) ensure long service life under continuous operation, reducing maintenance frequency on washdown lines such as mixers and dosing pumps. Feature → Business Impact → Application: The motor’s horizontal mounting orientation and F1 position simplify retrofits and maintenance access in compact equipment footprints, enabling easier replacements without major mechanical changes. Feature → Business Impact → Application: Industry-grade certifications (CSA, CSA EEV, UR) support global compliance for OEMs, distributors, and integrators, facilitating cross-border sourcing and supplier qualification while limiting regulatory risk. Longer-term ROI benefits include lower energy consumption, reduced warranty/maintenance costs, and increased machine uptime across high-throughput environments.
Get a Quick Quote for a ABB 7BEWDM3618T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWDM3618T?
Enquire Now
FAQs
Yes. The EWDM3618T is designed for dual-voltage operation at 230 V or 460 V with 60 Hz three-phase power. It supports direct-on-line starting and is suited for standard industrial power architectures, enabling straightforward integration into existing equipment without complex VFDs or reconfigurations.
The motor uses a 184T frame with a foot-mounted base and horizontal orientation in the F1 position, featuring a standard drive end flange. This common frame size simplifies retrofits into legacy equipment and reduces the need for custom mounting brackets, minimizing installation time and risk.
This motor carries CSA, CSA EEV, and UR certifications, signaling compliance with North American and international safety and performance standards. These approvals, together with TEFC construction and Premium Efficiency rating, help meet regulatory requirements for global OEMs, distributors, and end users while supporting safer, more reliable operation.
The TEFC enclosure and washdown-ready construction resist cleaning chemicals and high-pressure streams, reducing seal and bearing exposure. With bearings rated 6206 and 6205 and a continuous-duty capability, the motor offers longer service intervals and lower maintenance costs in washdown-heavy environments such as dairies, breweries, and meat processing lines.
Premium Efficiency reduces energy consumption and heat dissipation, lowering cooling needs in equipment rooms. Combined with reliable direct-on-line starting, robust bearings, and a compact footprint, facilities typically see reduced energy costs, lower maintenance interventions, and improved line uptime, supporting faster throughput and a lower total cost of ownership.
