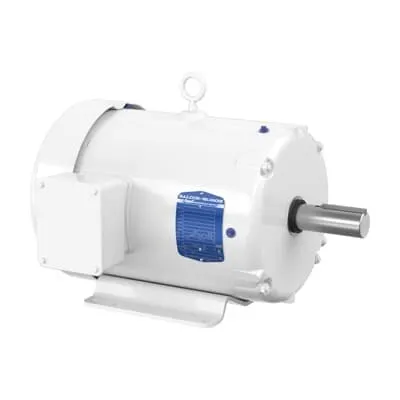

ABB 7BEWDM3705T Washdown Motor - TEFC, 3HP
Part Number: 7BEWDM3705T
Quick Summary
7BEWDM3705T is a washdown motor delivering 3 HP for sanitary food processing and packaging lines. In washdown environments, maintenance downtime and corrosion risk are persistent pain points; this unit mitigates them with a strong TEFC enclosure and a White Washdown construction. Core certifications include CSA, CSA EEV, and UR, complemented by a NEMA Design Code B, insulation class F, and a 40 °C ambient rating. With 230/460 V dual voltage and 3-phase power, it integrates easily with existing electrical drives. This combination reduces total cost of ownership, improves process uptime, and enables compliant, safe operation in critical sanitary applications.
Product Information
Extended Description
7BEWDM3705T ABB: Washdown Motor 3 Hp 230 V (EWDM3705T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,865RPM,3PH,60HZ,215T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM3705T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYE572: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EWDM3705T
Gross Volume
7192.91 in³
Gross Weight
111 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,865RPM,3PH,60HZ,215T,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 900 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM3705T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
62 %
Product Name
White Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
111 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
10.4 A | 5.2 A
Rated Efficiency
86.50 %
Rated Speed
865 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
3 HP, 900 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
TEFC enclosure and White Washdown construction provide robust protection against washdown fluids and ease of cleaning, translating to reduced maintenance events and longer motor life in sanitary environments. This translates to lower operating costs and higher line availability for food processing and pharmaceutical packaging, where cleanliness is non-negotiable and downtime is costly. Premium efficiency (86.50%) lowers energy consumption on continuous duty lines, delivering measurable cost savings over the motor’s operating life and supporting sustainability targets on industrial floors. The dual voltage design (230 V / 460 V) and 60 Hz specification simplify retrofits and new installs alike, enabling fast commissioning and fewer power infrastructure changes in existing plants. A 215T frame with 8 poles and NEMA design B aligns with common OEM drives, easing replacement and interoperability during maintenance windows. Horizontal, foot-mounted F1 mounting plus a TEFC enclosure streamline mounting and service access, reducing installation time and allowing safe, maintenance-friendly setups in tight machinery rooms. Durable bearings (6307 and 6206 ball) enhance reliability and reduce lubrication frequency, a key uptime factor in high-pressure washdown zones. Ambient ratings up to 40 °C and a service factor of 1.15 support continuous operation in variable facility conditions, while stock availability across multiple warehouses enables faster turnarounds for urgent production needs.
Get a Quick Quote for a ABB 7BEWDM3705T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWDM3705T?
Enquire Now
FAQs
Yes. The 7BEWDM3705T supports dual voltage 230 V / 460 V and three-phase power at 60 Hz, within a 215T frame and 3-phase drive setup, enabling straightforward integration into existing plants without reconfiguring control gear.
Key specs include 3 HP output, a rated speed of 865 r/min, and a synchronous speed of 900 r/min. It uses a TEFC enclosure, NEMA B design, insulation class F, and operates efficiently at 86.5% with a service factor of 1.15 for continuous duty.
Yes. The White Washdown construction with TEFC enclosure and a 40 °C ambient rating makes it well-suited for washdown cleaning cycles, while the 215T frame and foot-mounted horizontal mounting simplify installation in tight sanitary spaces.
This motor carries CSA, CSA EEV, and UR certifications, reflecting electrical safety and reliability compliance. It also adheres to NEMA Design Code B, insulation class F, and a TEFC enclosure, which together support safe operation in demanding industrial environments.
Expect durable bearings (6307 and 6206), a robust TEFC enclosure, and low lubrication needs, which reduce maintenance downtime. The premium efficiency rating lowers energy costs, contributing to a favorable return on investment when deployed on continuous-duty sanitary lines with long operating cycles.
