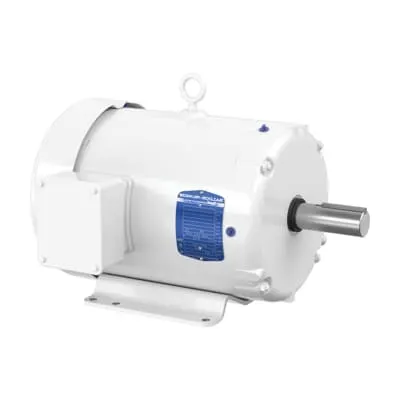

ABB 7BEWDM3710T Washdown Motor - TEFC 3-Phase
Part Number: 7BEWDM3710T
Quick Summary
ABB 7BEWDM3710T Washdown Motor delivers 7.5 HP of clean, durable motive power for sanitary, high-hygiene applications. In washdown-heavy environments, downtime and corrosion-related maintenance can erode uptime and profitability. This motor combines Premium Efficiency, a TEFC enclosure, and NEMA Design Code A with CSA and UR certifications to meet safety and energy standards. Its 230/460 V, 60 Hz, 3-phase design supports global installations, while a rugged 213T frame and 1.38 in shaft diameter ensure reliable coupling with common pumps and conveyors. By choosing this solution, you reduce energy costs, simplify inventory, and improve compliance across regulated industries.
Product Information
Extended Description
7BEWDM3710T ABB: Washdown Motor 7.5 Hp 230 V (EWDM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213T,3738M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM3710T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYH872: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EWDM3710T
Gross Volume
7561.383 in³
Gross Weight
129 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213T,3738M,TEFC,F
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM3710T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
80 %
Product Name
White Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
129 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature: Premium Efficiency (Rated Efficiency 91.70%). Business Impact: Lower operating costs and cooler operation, reducing energy bills and heat load. Application: conveyors and pumps in continuous service, especially where energy targets are prioritized. Feature: TEFC enclosure with White Washdown design. Business Impact: Superior protection against washdowns, corrosion, and ingress in food & beverage, pharma, and packaging lines. Application: hygienic environments requiring robust cleaning cycles. Feature: Dual Voltage 230/460 V at 60 Hz, 3-phase. Business Impact: Installation flexibility across plants and sites, simplifying spares and cross-site procurement. Application: global manufacturing networks and multi-site deployments. Feature: 213T frame, 7.5 HP, 1770 r/min (4P), direct-on-line start. Business Impact: Compatible with common mechanical drives, predictable load response, and straightforward electrical installation. Application: pumps, fans, and conveyors with moderate inertia loads. Feature: Foot-mounted, horizontal mounting (F1) with a 1.38 in shaft diameter. Business Impact: Easy on-site alignment, stable operation, and simple replacement in retrofit projects. Application: retrofit or new-build equipment in compact footprints. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Minimal project downtime, rapid deployment, and streamlined maintenance planning. Application: spare parts strategy, capital projects, and just-in-time stocking. Feature: Compliance and design standards (NEMA Design Code A, Premium Efficiency). Business Impact: Regulatory alignment and reliable performance under demanding industrial codes. Application: regulated processes in food, beverage, and pharma settings; long-term operational predictability.
Get a Quick Quote for a ABB 7BEWDM3710T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWDM3710T?
Enquire Now
FAQs
Plan for a foot-mounted, horizontal (F1) installation on a level base. Use the 213T frame and 1.38 in shaft with a Direct On Line start. Ensure supply is 230/460 V, 60 Hz, 3-phase, and provide proper alignment with the driven load to maintain lifecycle performance.
The motor delivers 7.5 HP with a rated speed of 1770 r/min (4P, single-speed). It operates at 60 Hz with 230/460 V input, and features Premium Efficiency with a TEFC enclosure and NEMA Design Code A. Rated current and lubrication are aligned to ‘for life’ maintenance expectations.
Yes. The White Washdown variant uses a TEFC enclosure designed for washdown sectors, combined with a robust frame and bearings to withstand frequent cleaning and chemical exposure typical in food & beverage, pharma, and packaging environments.
The motor carries CSA and UR certifications, with CSA EEV noted in documentation, and adheres to NEMA Design Code A. It also features Premium Efficiency, supporting energy-related compliance in regulated industries.
Lead time is listed as 0 day with stock at multiple warehouses, enabling rapid deployment. Warranty terms indicate standard warranty conditions with the note that products under warranty must be returned if issues arise, so verify specifics at purchase.
