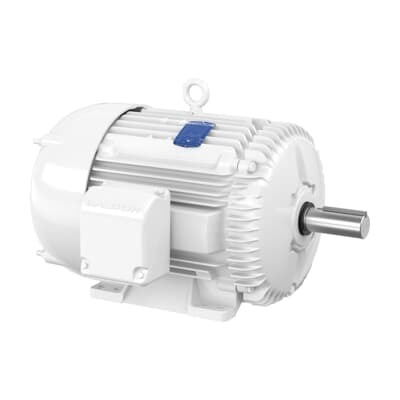

ABB 7BEWDM4116T Washdown Motor - IP55 TEFC
Part Number: 7BEWDM4116T
Quick Summary
ABB 7BEWDM4116T washdown motor delivers reliable power for harsh washdown environments in food processing and packaging lines. Engineers often face corrosion, frequent hose-downs, and downtime in wet zones, making robust, compliant drive solutions essential. This 25 HP, 230/460 V, 60 Hz three-phase motor features a TEFC enclosure and IP55 protection, along with CSA/UR certifications, supporting sanitary and safety standards. With premium efficiency and a rugged 326T frame, it helps reduce energy use and maintenance costs. Its straightforward installation—foot-mounted, horizontal orientation with direct-on-line starting—facilitates rapid integration with existing drives and conveyors, boosting line productivity and uptime.
Product Information
Extended Description
7BEWDM4116T ABB: Washdown Motor 25 Hp 230 V (EWDM4116T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,880RPM,3PH,60HZ,326T,1272M,TEF
Ambient Temperature
40 °C
Bearing
6312
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM4116T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EWDM4116T
Gross Volume
18748.226 inÂł
Gross Weight
578 lb
IP Class
IP55
Insulation Class
F
Invoice Description
25HP,880RPM,3PH,60HZ,326T,1272M,TEFC,F1
Made To Order
No
Maximum Speed
1325 r/min
Medium Description
Stainless Steel, 25 HP, 900 RPM, Frame Size 326T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM4116T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
70 %
Product Name
Stainless Steel
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
578 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
74 A | 37 A
Rated Efficiency
90.20 %
Rated Speed
880 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
2.13 in
Short Description
25 HP, 900 RPM, Frame Size 326T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application. TEFC enclosure and IP55 protection protect internal windings from washdown exposure, reducing corrosion risk and extending service life in food processing and packaging lines. This translates to lower maintenance intervals and higher plant uptime, especially in zones with high-pressure cleaning and caustic cleaners. Feature → Business Impact → Application. A 25 HP, 880 r/min rated speed in a 326T frame delivers strong torque for conveyors, mixers, and pumps without overcomplicating drive control, enabling reliable operation in bottling lines and material handling. Feature → Business Impact → Application. 230/460 V, 60 Hz, 3-phase versatility supports integration with existing electrical infrastructure and standard industrial drives, minimizing wiring changes and downtime during retrofits. Feature → Business Impact → Application. TEFC construction combined with Premium Efficiency performance reduces energy consumption over the motor’s life, cutting operating costs and enhancing sustainability in continuous-running processes like food packaging and beverage lines. Feature → Business Impact → Application. CSA EEV and UR certifications provide regulatory compliance confidence for regulated industries, easing procurement and audit trails while maintaining safety and reliability in washdown environments.
