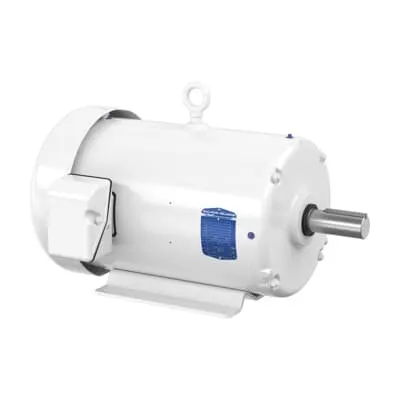

ABB EWDM41906T Washdown Motor - IP55, TEFC, 3PH 60Hz
Part Number: 7BEWDM41906T
Quick Summary
The ABB EWDM41906T washdown motor delivers 20 HP for robust, hygienic drive in food and beverage processing. This 3-phase motor is designed for washdown environments where corrosion resistance and uptime matter. Key certifications include IP55, TEFC enclosure, and Premium Efficiency with CSA, UR, and CSA EEV alignment for regulated industries. Dual voltage operation (230/460 V) and a 256T frame simplify installation on existing lines, while 60 Hz performance keeps conveyors and pumps synchronized. With stock in multiple warehouses and a 0-day lead time, it’s a practical choice for OEMs aiming to minimize downtime and surprise costs.
Product Information
Extended Description
7BEWDM41906T ABB: Washdown Motor 20 Hp 230 V (EWDM41906T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3520RPM,3PH,60HZ,256T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM41906T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
39LYS015: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EWDM41906T
Gross Volume
9651.933 in³
Gross Weight
109.769 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IP Class
IP55
Insulation Class
F
Invoice Description
20HP,3520RPM,3PH,60HZ,256T,TEFC,F1
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
White Washdown, 20 HP, 3600 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM41906T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
90 %
Product Name
White Washdown
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
109.769 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A | 23 A
Rated Efficiency
91 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: IP55 protection and TEFC enclosure; Business Impact: Protects windings and bearings from water ingress and dust, extending motor life in washdown zones; Application: food processing lines, dairy equipment, and pharma packaging where daily cleaning is required. Feature: 20 HP output on a compact 256T frame; Business Impact: Delivers high torque in a tight footprint, enabling retrofits and space-limited installations; Application: conveyors and pumps on existing lines where mounting space is at a premium. Feature: Dual voltage 230/460 V; Business Impact: Simplifies site-to-site deployment and reduces spare-part complexity; Application: multi-site manufacturing with common warehouse stocking. Feature: Premium Efficiency (≈91%) and 90% power factor; Business Impact: Lower energy consumption and cooler operation, reducing operating costs; Application: continuous-running drives like mixers or agitators. Feature: 60 Hz, 2-pole, 3-phase, 3520 r/min rated speed; Business Impact: Predictable performance with standard drive systems; Application: downstream packaging lines and process pumps. Feature: Stocked at multiple warehouses; Business Impact: Short lead times and reliable procurement; Application: OEM projects with tight schedules.
