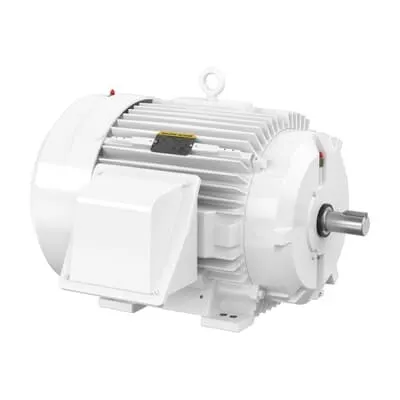

ABB 7BEWDM4310T Motor - 60HP, 3560RPM, IP55 TEFC
Part Number: 7BEWDM4310T
Quick Summary
ABB 7BEWDM4310T motor is a washdown-ready, 60 HP three-phase drive for demanding industrial applications. Operators in wet environments face downtime from corrosion, frequent cleaning cycles, and maintenance burdens; this motor is engineered to withstand rigorous washdowns while maintaining performance. With IP55 protection, Premium Efficiency, and CSA/CCSA certifications, it supports global compliance across plants and OEMs. The dual voltage capability (230V/460V) and 60 Hz operation simplify regional procurement, while a robust 364TS frame and TEFC enclosure provide reliable installation in moving lines and portable applications alike. Stocked across multiple warehouses, it helps reduce lead times and total cost of ownership through standardization and ease of maintenance.
Product Information
Extended Description
7BEWDM4310T ABB: Washdown Motor 60 Hp 230 V (EWDM4310T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,3560RPM,3PH,60HZ,364TS,TEFC,F1
Ambient Temperature
40 °C
Bearing
65BC03JGG30A, Ball
Bearing NDE
65BC03JGG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM4310T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
EWDM4310T
Gross Volume
33833.008 inÂł
Gross Weight
453.139 kg
IP Class
IP55
Insulation Class
F
Invoice Description
60HP,3560RPM,3PH,60HZ,364TS,TEFC,F1
Made To Order
No
Medium Description
Stainless Steel, 60 HP, 3600 RPM, Frame Size 364Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM4310T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
91 %
Product Name
Stainless Steel
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
453.139 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
132 A | 66.1 A
Rated Efficiency
93.60 %
Rated Speed
3560 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
60 HP, 3600 RPM, Frame Size 364Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The washdown-ready design delivers IP55 protection and TEFC enclosure, dramatically reducing corrosion risk and maintenance in food & beverage, water treatment, or chemical processing lines. This translates to lower downtime and longer service intervals, keeping production lines running at peak efficiency. The 60 HP, 3560 r/min, 60 Hz, 3-phase configuration with a 364TS frame supports scalable drive systems and seamless integration with existing motor bases, minimizing installation complexity and downtime during upgrades. Dual voltage (230 V / 460 V) reduces inventory complexity for multinational facilities and regional distributors, enabling faster deployment on global projects. Premium Efficiency (93.60% rated) lowers energy costs and heat load in the plant, while a 1.15 service factor provides a comfortable margin for routine starts and dynamic loads. Bearings (65BC03JGG30A) and NEMA B design contribute to predictable performance and easier maintenance scheduling, supporting longer motor life in continuous-duty applications. Stocked-at-warehouses availability and a straightforward direct-on-line start further improve procurement certainty and total cost of ownership for engineering teams.
