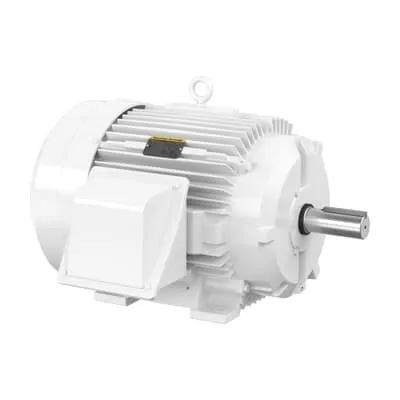

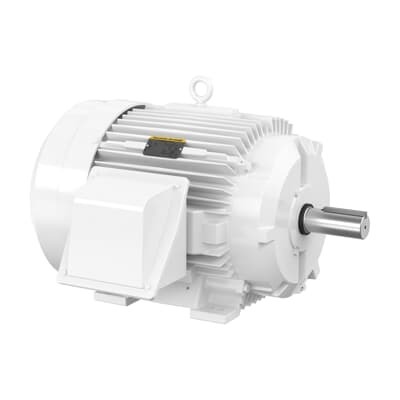

ABB 7BEWDM4316T Washdown Motor - IP55 TEFC Enclosed
Part Number: 7BEWDM4316T
Quick Summary
ABB 7BEWDM4316T is a washdown motor designed for reliable performance in sanitary production lines. When uptime matters, engineers face corrosion, washdown exposure, and inconsistent power quality; this motor mitigates those risks with a rugged TEFC enclosure and IP55 protection. The unit carries premium efficiency and North American certifications (CSA EEV, CCSA US) to support regulatory compliance. With 75 HP and 1785 r/min on 230/460 V 3-phase at 60 Hz, it delivers robust torque and steady speed while reducing energy consumption. The combination of a 365T frame, foot-mounted base, and direct-on-line starting offers straightforward installation and predictable maintenance costs for industrial facilities.
Product Information
Extended Description
7BEWDM4316T ABB: Washdown Motor 75 Hp 230 V (EWDM4316T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1785RPM,3PH,60HZ,365T,A36070M,
Ambient Temperature
40 °C
Bearing
65BC03JGG30A, Ball
Bearing NDE
65BC03JGG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM4316T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
EWDM4316T
Gross Volume
33833.008 in³
Gross Weight
437.717 kg
IP Class
IP55
Insulation Class
F
Invoice Description
75HP,1785RPM,3PH,60HZ,365T,A36070M,TEFC
Made To Order
No
Medium Description
Stainless Steel, 75 HP, 1800 RPM, Frame Size 365T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM4316T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
Stainless Steel
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
437.717 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
172 A | 86 A
Rated Efficiency
95.40 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.37 in
Short Description
75 HP, 1800 RPM, Frame Size 365T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: IP55 TEFC enclosure and washdown-ready design provide corrosion resistance and easy cleaning in wet environments. Business Impact: Reduces downtime due to corrosion or ingress, extends motor life in challenging washdown conditions, and lowers maintenance frequency. Application: Food processing, beverage lines, and pharmaceutical production where frequent cleaning is required. Feature: Premium efficiency (approx. 95.40%) and favorable power factor (0.86) improve energy usage and electrical drive reliability. Business Impact: Lower operating costs, reduced utility demand, and better motor reliability during peak loads. Application: Continuous-duty conveyors and mixing stations in sanitary plants.Feature: 75 HP output at 1785 r/min with 230/460 V, 3-phase, 60 Hz rating and a 365T frame. Business Impact: Strong, predictable torque for high-load applications and compatibility with common plant power distribution; simplified spare parts planning.Feature: NEMA Design B, Direct-On-Line starting, and foot-mounted orientation. Business Impact: Easy integration with existing VFDs or direct-start controls, fast commissioning, and stable alignment for long bearing life. Application: Continuous process lines and washdown environments requiring robust start-up and mounting versatility.Feature: Robust bearings (65BC03JGG30A) and 40 °C ambient tolerance support extended service life. Business Impact: Lower maintenance costs and fewer unscheduled stoppages, improving total cost of ownership. Application: Humid manufacturing sites with frequent sanitation cycles.Feature: Stocked-at-warehouses across regions enables zero-day or minimal lead times. Business Impact: Quicker project timelines and reduced inventory risk for critical line upgrades. Application: Large-scale plant retrofits and uptime-focused modernizations.
Get a Quick Quote for a ABB 7BEWDM4316T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWDM4316T?
Enquire Now
FAQs
This motor uses a foot-mounted 365T frame with horizontal mounting and Direct On Line starting. The TEFC enclosure and IP55 rating protect against spray and moisture, enabling straightforward alignment with existing drives and reducing enclosure isolation costs. Ensure proper drainage around the base and verify a clean, dry installation surface to maximize bearing life.
It is a 75 HP, 1785 r/min, 3-phase motor rated for 230 V or 460 V at 60 Hz. The rated currents are 172 A and 86 A, with a power factor of about 0.86. These specs support reliable, consistent torque for continuous operation and compatibility with common plant electrical distribution.
The motor features IP55 and a TEFC enclosure and aligns with NEMA design B. It carries Premium Efficiency designation and CSA/CCSA credentials, supporting compliance for U.S. and international sanitary applications, including food and pharma sectors.
Direct On Line starting is supported and commonly used for this model. Benefits include simple control, minimal starting circuitry, and immediate torque on startup. When combined with a suitable overload protection and a robust drive, it offers reliable performance for continuous-process lines without complex soft-start requirements.
Warranty terms indicate standard warranty coverage with the requirement that warranty returns be processed through the provider. Regular maintenance should focus on bearing inspection (65BC03JGG30A ball bearings), cleanliness, and seal integrity. Typical intervals align with manufacturer guidance and the plant’s sanitation schedule to maximize uptime and reduce total cost of ownership.
