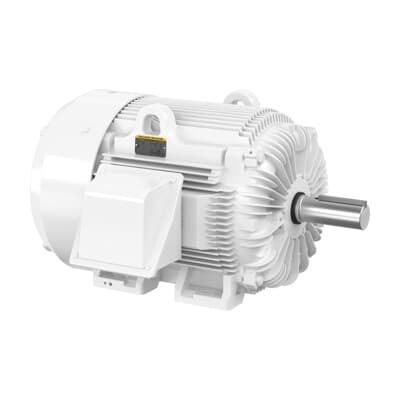

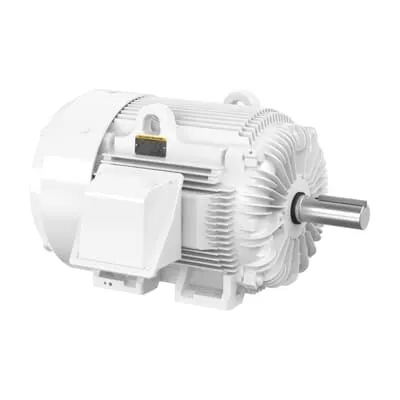

ABB 7BEWDM4404T Washdown Motor - IP55 TEFC 75 HP
Part Number: 7BEWDM4404T
Quick Summary
Washdown motor delivers reliable motion for hygienic process lines in food, beverage, and pharmaceutical facilities. Engineered to withstand frequent washdowns and chemical exposure, it minimizes corrosion risk and unplanned downtime. The design carries IP55 protection, premium efficiency (NEMA 12-12), and CSA US/EEV certifications to support compliance across industries. With a 75 HP output at 1185 RPM and 230/460 V three-phase service, it pairs robust performance with flexible electrical supply options. The TEFC enclosure, 405T frame, and foot-mounted, horizontal F1 mounting simplify installation in existing lines and new builds, while a 1.15 service factor supports steady operation under load surges. This combination reduces energy costs and extends motor life in demanding plants.
Product Information
Extended Description
7BEWDM4404T ABB: Washdown Motor 75 Hp 230 V (EWDM4404T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1185RPM,3PH,60HZ,405T,TEFC,F1
Ambient Temperature
40 °C
Bearing
80BC03JPP30A, Ball
Bearing NDE
80BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM4404T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
EWDM4404T
Gross Volume
105840 inÂł
Gross Weight
599.649 kg
IP Class
IP55
Insulation Class
F
Invoice Description
75HP,1185RPM,3PH,60HZ,405T,TEFC,F1
Made To Order
No
Medium Description
Stainless Steel, 75 HP, 1200 RPM, Frame Size 405T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM4404T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
85 %
Product Name
Stainless Steel
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
599.649 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
174 A | 87 A
Rated Efficiency
94.50 %
Rated Speed
1185 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.88 in
Short Description
75 HP, 1200 RPM, Frame Size 405T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and IP55 protection provide superior ingress protection and ease of cleaning in washdown environments. Business Impact: Reduces maintenance interruptions and corrosion-related downtime, improving overall equipment availability. Application: Ideal for hygienic conveyors, pumps, and mixers in food and beverage lines. Feature: 75 HP, 1185 RPM, 3-phase operation at 230/460 V delivers strong, dependable torque with flexible power input. Business Impact: Delivers consistent process performance and lowers drive sizing risk, enabling smoother line operations and less gear drive wear. Application: Food processing skids, beverage filling lines, pharmaceutical batching. Feature: Frame 405T with foot-mounted, horizontal F1 mounting enables straightforward retrofits and modular installations. Business Impact: Reduces installation time and costs, supports easy alignment with existing baseplates and guards. Application: Upgrading legacy systems or adding to new hygienic equipment. Feature: Premium efficiency (NEMA 12-12) and service factor 1.15 lower energy consumption and provide reliable overload tolerance. Business Impact: Cuts operating costs over the motor lifecycle and improves resilience under peak loads. Application: Continuous-duty conveyors and processing equipment in high-demand plants. Feature: Synchronous speed around 1200 r/min and a rated current of 174 A / 87 A support precise electrical design and motor sizing. Business Impact: Facilitates accurate electrical calculations, reduces wiring complexity, and enhances drive system reliability. Application: Process automation loops and motor control centers in industrial facilities.
Get a Quick Quote for a ABB 7BEWDM4404T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWDM4404T?
Enquire Now
FAQs
The motor uses a 405T frame with foot-mounted, horizontal F1 mounting, designed for easy retrofit and integration into existing baseplates and equipment such as conveyors or pumps.
Yes. This motor operates on 230 V or 460 V three-phase power at 60 Hz, giving you flexibility to match your plant electrical infrastructure and drive systems.
It features premium efficiency (NEMA 12-12), IP55 protection, and CSA US/EEV certification support, aligning with industry standards for safe, efficient, and compliant operation.
The motor is rated for continuous duty with a 1.15 service factor, providing reliable performance under nominal overloads and peak operation scenarios.
Ideal for washdown intensive environments such as food and beverage processing, pharmaceuticals, and hygienic packaging lines, including conveyors, mixers, and pumps that require robust TEFC protection and easy cleaning.
