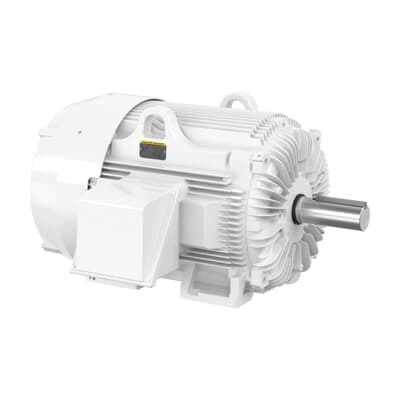

ABB EWDM4419T Washdown Motor - CSA EEV
Part Number: 7BEWDM4419T
Quick Summary
The ABB EWDM4419T washdown motor delivers 75 HP for demanding food-processing and filtration systems. In washdown environments, corrosion resistance and reliable sealing are major concerns, especially with frequent cleaning cycles. It carries robust safety and efficiency certifications, including CSA EEV, CCSA US, and a premium efficiency rating aligned with NEMA standards for TEFC enclosures. Designed for stainless steel lines and continuous operation, this motor helps OEMs reduce unplanned downtime and extend service intervals. By combining a rugged build with precise tolerances and ready stock, it supports fast project timelines while meeting sanitary and regulatory requirements. With stocked warehouses across the US and abroad, procurement teams can meet tight schedules without sacrificing reliability.
Product Information
Extended Description
7BEWDM4419T ABB: Washdown Motor 75 Hp 230 V (EWDM4419T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,890RPM,3PH,60HZ,444T,TEFC,F1
Ambient Temperature
40 °C
Bearing
90BC03JPP30A, Ball
Bearing NDE
90BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EWDM4419T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
EWDM4419T
Gross Volume
105840 in³
Gross Weight
823.27 kg
Insulation Class
F
Invoice Description
75HP,890RPM,3PH,60HZ,444T,TEFC,F1
Made To Order
No
Medium Description
Stainless Steel, 75 HP, 900 RPM, Frame Size 444T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM4419T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
444T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
83 %
Product Name
Stainless Steel
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
823.27 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
179 A | 89.3 A
Rated Efficiency
93.60 %
Rated Speed
890 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
3.38 in
Short Description
75 HP, 900 RPM, Frame Size 444T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Stainless steel construction and a TEFC enclosure provide corrosion resistance in washdown environments. This combination extends bearing life and reduces maintenance costs, especially on equipment exposed to frequent sanitizing cycles. In food, beverage, and pharmaceutical lines, the motor's frame 444T and 3-phase, 60 Hz operation support reliable performance with standard mounting (foot mounted, horizontal, F1). Feature: 8-pole design delivering about 890 rpm at 60 Hz; Business Impact: stable torque characteristics and smoother operation for packaging and material handling; Application: high-throughput lines requiring reliable start-up and low-speed torque. Feature: Dual voltage 230/460 V and 3-phase design; Business Impact: inventory simplification and flexible integration with existing drives and VFDs; Application: plants with varying line voltages. Feature: TEFC enclosure and NEMA Design B; Business Impact: better protection against dust and washdown environments; Application: conveyors and process equipment in sanitary settings. Feature: Premium efficiency ~93.60% and service factor 1.15; Business Impact: energy savings and improved thermal performance over the motor’s lifecycle; Application: long-running production lines aiming to reduce operating costs. Feature: Direct On Line starting with 0 day lead time and warehouses stocked worldwide; Business Impact: rapid deployment and reduced project risk; Application: OEMs delivering quick-turn projects. Feature: Foot mounted, horizontal F1 mounting with 3.38 in shaft and 444T frame; Business Impact: easy retrofits and standard couplings; Application: retrofit on existing equipment and new line builds in hygienic industries. Industry context notes: this motor supports hygienic designs and regulatory compliance while delivering dependable performance for sanitary process equipment across food and beverage, pharma, and packaging ecosystems.
Get a Quick Quote for a ABB 7BEWDM4419T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEWDM4419T?
Enquire Now
FAQs
Yes. The EWDM4419T is a dual-voltage three-phase motor rated for 230 V or 460 V at 60 Hz. It is wired per standard three-phase guidelines and supports direct-on-line starting. Ensure the drive and controls match the 444T frame and TEFC enclosure, and follow the horizontal mounting position (F1) to optimize alignment and coupling.
The motor runs at 890 r/min (synchronous speed ~900 r/min) with an 8-pole design in a 444T frame. The 8P configuration provides high starting torque with stable low-speed performance, making it suitable for conveyors, pumps, and mixers in continuous duty environments.
Yes. The EWDM4419T is designed for hygienic environments, featuring TEFC enclosure and corrosion-resistant components suitable for washdown cycles in food, beverage, and pharmaceutical applications. Its 75 HP output, frame 444T, and NEMA design compatibility support reliable operation in sanitary lines.
This motor carries CSA EEV and CCSA US certifications, indicating compliance with safety and electrical standards for North American markets. It is built to NEMA design B with premium efficiency, ensuring regulatory alignment for industrial equipment used in regulated production environments.
Warranty terms align with standard vendor policy requiring return for warranty issues. With a 93.60% rated efficiency and 1.15 service factor, the EWDM4419T reduces energy consumption and heat generation, delivering lower operating costs and extended equipment life, contributing to a favorable return on investment in continuous-process applications.
