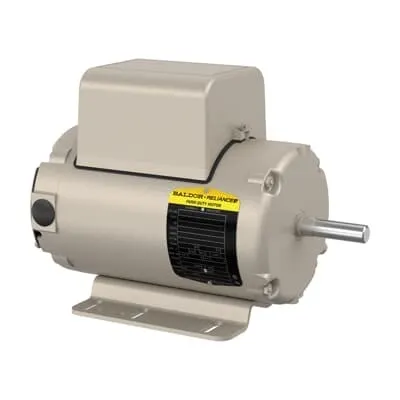

ABB FDAOL3507A General Purpose HVAC - CSA UR
Part Number: 7BFDAOL3507A
Quick Summary
ABB FDAOL3507A General Purpose HVAC motor delivers reliable 0.75 HP performance for commercial HVAC fans and blowers. This compact, single-phase drive is designed to simplify installation and maintenance in demanding environments. The model carries CSA and UR certifications and meets NEMA design standards, with TEAO enclosure and a 56H frame for rugged, easy-service operation. By combining robust electrical performance with voltage versatility and straightforward procurement, this motor supports HVAC retrofits, commercial buildings, and process ventilation while delivering predictable energy use and reduced downtime for procurement teams and engineers.
Product Information
Extended Description
7BFDAOL3507A ABB: General Purpose HVAC 0.75 Hp 115 V (FDAOL3507A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56H,3428LC,T
Ambient Temperature
40 °C
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDAOL3507A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDAOL3507A
Gross Volume
2110.969 in³
Gross Weight
35 lb
Insulation Class
F
Invoice Description
.75HP,1725RPM,1PH,60HZ,56H,3428LC,TEAO,F
Made To Order
No
Medium Description
General Purpose HVAC, 0.75 HP, 1800 RPM, Frame Size 56H, Standard Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (FDAOL3507A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
80 %
Product Name
General Purpose HVAC
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
35 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.2 A | 4.1 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.20
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56H, Standard, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
115 V | 230 V
Feature: 0.75 HP, single-phase, 60 Hz operation, dual voltage 115/230 V, 56H frame, TEAO enclosure, 1 Phase, direct-on-line starting. Business Impact: Compact yet powerful enough for small- to mid-size HVAC fans; Installation is straightforward in tight spaces and reduces wiring complexity. Application: Suitable for commercial HVAC blowers and fans in retrofits or new installations, with easy cross-compatibility across standard electrical panels. Feature: TEAO, foot-mounted, horizontal mounting orientation, shaft Ø 0.63 in, 56H frame. Business Impact: Simplifies mounting and serviceability; lowers installation time with common, maintenance-friendly dimensions. Application: Ideal for open-air or cabinet installations in air handling units and ventilation systems. Feature: Efficiency and electrical load specs—74% rated efficiency, 80% power factor, 1.20 service factor; rated current 8.2 A / 4.1 A; 1725 rpm. Business Impact: Reduces energy consumption and electrical stress; improves motor life and reduces electrical bill while maintaining consistent performance. Application: Effective for continuous-duty HVAC duty cycles and process ventilation requiring steady torque. Feature: Certifications and standards—CSA | UR, NEMA design code N, insulation class F, TEAO enclosure. Business Impact: Ensures regulatory compliance and safer installations; simplifies procurement with recognized certifications. Application: Suitable for regulated facilities and OEMs seeking compliant, reliable drives. Feature: Availability and logistics—Stocked at multiple warehouses; 0 day lead time; warranty policy: product under warranty must be returned. Business Impact: Minimizes downtime and stock risk; accelerates project timelines and renewable-retrofit planning. Application: Fast procurement for facilities management and integrators handling HVAC retrofits and service contracts.
Get a Quick Quote for a ABB 7BFDAOL3507A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDAOL3507A?
Enquire Now
FAQs
Yes. The FDAOL3507A is a 1-phase, 60 Hz motor rated at 0.75 HP with dual voltage 115/230 V, designed for general purpose HVAC fans and blowers. Its 56H frame and TEAO enclosure support straightforward mounting and maintenance in commercial environments.
Key specs include 0.75 HP output, 1725 rpm, 60 Hz operation, dual voltage 115/230 V, rated currents 8.2 A / 4.1 A, power factor 80%, and efficiency about 74%. It uses a 56H frame with a TEAO enclosure and a 1-phase supply for simple integration.
Yes. The motor carries CSA | UR certification and adheres to NEMA design standards. It also features an insulation class F and a TEAO enclosure, aligning with common safety and performance requirements in industrial HVAC.
The motor is foot-mounted with horizontal mounting orientation and TEAO enclosure, frame size 56H. It is designed for straightforward installation in open racks or control cabinets and supports direct-on-line starting for immediate startup.
This model is stocked in multiple warehouses with 0-day lead time, offering fast procurement. Warranty terms specify that products under warranty must be returned, reflecting standard warranty procedures for ABB Baldor-Reliance motors.
