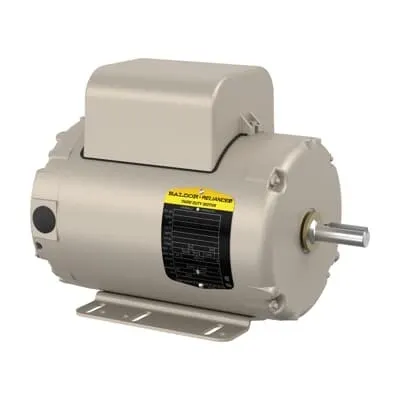

ABB FDAOL3532A General Purpose HVAC Motor - TEAO 1PH 60Hz
Part Number: 7BFDAOL3532A
Quick Summary
ABB FDAOL3532A is a general purpose HVAC motor designed to drive fans and blowers in commercial and light-industrial HVAC systems. This model helps engineers avoid lengthy procurement cycles by leveraging stock across multiple warehouses with 0 day lead time. It carries CSA and UR certifications and adheres to NEMA design expectations, with a TEAO enclosure for reliable cooling in challenging environments. With a 1.5 HP rating, 1725 rpm, and 60 Hz operation at 115/208-230 V single-phase, it combines robust performance with installation flexibility, fitting neatly into standard 56H frames and common mounting configurations for HVAC applications.
Product Information
Extended Description
7BFDAOL3532A ABB: General Purpose HVAC 1.5 Hp 115 V (FDAOL3532A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1725RPM,1PH,60HZ,56H,3532LC,T
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDAOL3532A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE3271: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDAOL3532A
Gross Volume
3496.049 in³
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
F
Invoice Description
1.5HP,1725RPM,1PH,60HZ,56H,3532LC,TEAO,F
Made To Order
No
Medium Description
General Purpose HVAC, 1.5 HP, 1800 RPM, Frame Size 56H, Standard Mounting, 1 Phase, TEAO Enclosure, 115/208-230 V, 60 Hz (FDAOL3532A
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
80 %
Product Name
General Purpose HVAC
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16 A | 7.8 A | 8 A
Rated Efficiency
75.50 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.20
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56H, Standard, 1 PH, TEAO, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V | 208 V | 230 V
Feature → Business Impact → Application: 1.5 HP, 1725 rpm at 60 Hz in a 56H frame provides substantial torque for HVAC fans while maintaining a compact footprint, enabling easier retrofits and smaller equipment footprints in rooftop units and air handling units. This translates to improved system responsiveness and lower installation labor costs for facilities teams. Application: suitable for commercial rooftop units, air handlers, and ventilation fans requiring reliable single-phase power. Feature → TEAO (Totally Enclosed Air Over) enclosure with standard drive end flange improves cooling efficiency and protects internal windings in dusty or industrial environments, reducing maintenance intervals and extending motor life. Application: installation in mechanical rooms or outdoor zones with variable ambient conditions. Feature → 115/208-230 V, 60 Hz, 1-phase input and 16 A/7.8 A/8 A rated currents simplify electrical design and wiring, reducing panel complexity and enabling quick commissioning. Application: plug-and-play integration with common HVAC controls and power distribution systems. Feature → 56H frame, foot-mounted base, shaft diameter 0.63 in, and 1-speed operation provide straightforward alignment with standard pulleys and belts, cutting alignment time and risk of misfit. Application: retrofit projects or new installations using standard 56H components. Feature → Energy and performance metrics (Rated Efficiency 75.50%, Power Factor 80%) support energy management goals and lower operating costs over the motor’s lifecycle. Application: supports green building credits and ongoing energy audits for commercial buildings. Feature → Certifications (CSA, UR) and NEMA design adherence deliver compliance confidence, while 40°C ambient tolerance ensures reliable operation in typical plant environments. Application: regulated HVAC installations across North America and international facilities. Feature → Stocked At Warehouses (US, GB, SG, etc.) with 0 day lead time reduces procurement risk and accelerates project timelines. Application: rapid deployment for urgent maintenance or new builds, minimizing downtime.
