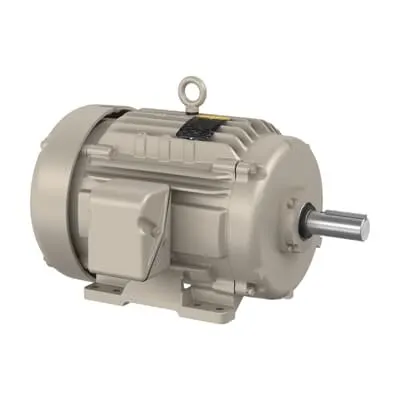

ABB 7BFDEM2334T-5 Farm Duty Motor - TEFC 575V CSA/UR
Part Number: 7BFDEM2334T-5
Quick Summary
Farm Duty motor ABB 7BFDEM2334T-5 delivers reliable 20 HP power for demanding agricultural and process applications. This design helps reduce downtime and maintenance costs in rugged farm and irrigation environments. The unit is certified CSA, CSA EEV, and UR, with NEMA-compliant design to support safe, code-aligned installations. With a 256T frame and TEFC enclosure, 575 V at 60 Hz, and a direct-on-line start, it integrates into existing systems quickly while meeting efficiency and environmental requirements. Stocked at multiple warehouses with immediate lead times, it provides supply-chain reliability and fast deployment for contractor and plant projects. By aligning with standard frame size and modular mounting, design engineers can simplify spare-part planning and service.
Product Information
Extended Description
7BFDEM2334T-5 ABB: Farm Duty Motor 20 Hp 575 V (FDEM2334T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1770RPM,3PH,60HZ,256T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM2334T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYK989: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
FDEM2334T-5
Gross Volume
9651.933 inÂł
Gross Weight
322 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
20HP,1770RPM,3PH,60HZ,256T,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 20 HP, 1800 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (FDEM2334T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
83 %
Product Name
Farm Duty
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
322 lb
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.2 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
20 HP, 1800 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
575 V
Feature: 20 HP output at 575 V with 60 Hz input. Business Impact: Delivers robust power for continuous farm and process operations, reducing voltage drop concerns and enabling consistent torque. Application: Supports irrigation control, grain handling, and processing lines with reliable DOL starting. Feature: TEFC enclosure on a 256T frame. Business Impact: Provides superior protection against dust and moisture, reducing maintenance and extending motor life in harsh environments. Application: Ideal for outdoor installations and damp facilities where ingress protection is essential. Feature: 1.15 service factor and 93% efficiency. Business Impact: Improves load tolerance and energy efficiency, lowering operating costs over the motor’s life. Application: Suitable for variable loads in agricultural equipment and light industrial conveyors. Feature: 1770 r/min (Synchronous 1800 r/min) with 4P design. Business Impact: Balances speed and torque for steady operation under continuous-duty conditions. Application: Suitable for fans, mixers, and pumps in farm equipment. Feature: 256T frame, 1.63 in shaft diameter, and foot mounting (F1). Business Impact: Facilitates straightforward installation and spare-part compatibility, reducing downtime when replacing units. Application: Replaces legacy motors in standardized farm duty portfolios. Feature: Certifications and standards (CSA, CSA EEV, UR; NEMA). Business Impact: Ensures code-compliant installations and simplifies procurement across North American projects. Application: Regulated environments requiring recognized safety certifications. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Quick deployment, shorter project timelines, and reliable supply for contractor bids. Application: Rapid integration into new builds and maintenance projects. Industry Context: This motor aligns with farm duty expectations for continuous operation, energy efficiency, and serviceability in agricultural and light industrial settings.
Get a Quick Quote for a ABB 7BFDEM2334T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM2334T-5?
Enquire Now
FAQs
Yes. This motor is designed for 575 V three-phase power at 60 Hz and features a TEFC enclosure for greater dust and moisture protection. It uses a 256T frame with a 1.63 in shaft and is foot-mounted, enabling straightforward replacement and integration into standard plant layouts.
Key specs include 20 HP output, 1770 r/min operating speed, 60 Hz, 575 V, 3-phase design with 4 poles, 1.15 service factor, and 93% efficiency. Rated current is approximately 19.2 A, with a 256T frame and a 1.63 in shaft diameter, suitable for direct-on-line starting.
Yes. The TEFC enclosure and NEMA-aligned design support continuous-duty operation in outdoor and damp farm environments. With a 40 °C ambient rating, CSA/UR certifications, and robust bearings, it is well-suited for irrigation pumps, processing conveyors, and other continuous-duty applications.
The motor carries CSA, CSA EEV, and UR certifications, with NEMA standards. These credentials help ensure local code compliance, safety, and reliability in North American installations, reducing the risk during audits and installations.
Lead time is listed as 0 day with stock at multiple warehouses, enabling rapid procurement and deployment. This minimizes project delays, supports faster maintenance cycles, and improves total cost of ownership for fleet operators and OEMs.
