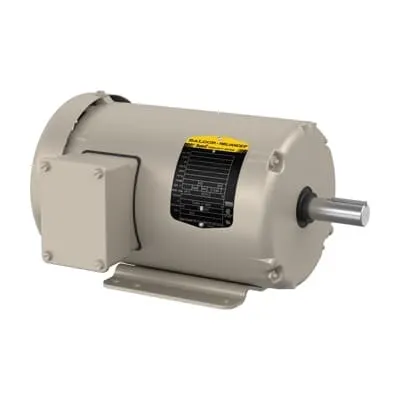

ABB 7BFDEM3546T Farm Duty Motor - IE3 Premium Efficiency
Part Number: 7BFDEM3546T
Quick Summary
ABB Farm Duty Motor 7BFDEM3546T provides reliable 1 HP drive for agricultural equipment and pumps. When uptime matters, you need quick access to stocked, ready-to-ship motors, not lengthy procurement delays. This model carries CSA, CSA EEV, and UR certifications with NEMA design alignment, ensuring safe, compliant operation in the field. With 60 Hz, 230/460 V availability and a TEFC enclosure, it delivers durable performance while reducing energy costs. The combination of robust construction and fast availability translates to lower total cost of ownership and improved project timelines for industrial farmers and OEMs alike.
Product Information
Extended Description
7BFDEM3546T ABB: Farm Duty Motor 1 Hp 230 V (FDEM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143T,3520M,TEF
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM3546T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE2354: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
FDEM3546T
Gross Volume
3496.049 inÂł
Gross Weight
38 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,143T,3520M,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 1 HP, 1800 RPM, Frame Size 143T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
38 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature: 1 HP, 1770 r/min, 60 Hz, 230/460 V 3-phase configuration. Business Impact: Delivers efficient, standardized power for farm machinery with predictable performance and compatibility with common control gear. Application: Irrigation pumps, conveyors, and processing equipment in agricultural settings. Feature: TEFC enclosure and steel 143T frame. Business Impact: Enhanced protection against dust, moisture, and harsh outdoor environments, reducing maintenance and downtime. Application: Outdoor installations and dusty barns where reliability matters. Feature: 4-pole design with 1800 r/min synchronous speed and NEMA B design. Business Impact: Smooth startup with solid torque characteristics and reliable performance under continuous duty. Application: Continuous operation in crop handling and feed systems. Feature: IE3 premium efficiency rating. Business Impact: Lower energy consumption and operating costs over the motor’s lifetime, improving sustainability metrics. Application: Any high-hour farm duty application where electricity costs are a consideration. Feature: Direct On Line starting and simple mounting (Foot Mounted, F1). Business Impact: Reduces installation complexity and control hardware, accelerating commissioning. Application: OEMs and service teams deploying standard 3-phase motor kits. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Accelerates procurement cycles and minimizes downtime in critical operations. Application: Field service and manufacturing lines requiring rapid replacement. Feature: 230 V / 460 V capability and 60 Hz compatibility. Business Impact: Flexible integration with existing electrical distribution and automation architectures. Application: Mixed-voltage plants and remote farm installations. Insight: The combination of stock availability, standard frame (143T), and robust 60 Hz operation aligns with industry practice for farm equipment, reducing engineering weeks and enabling predictable ROI.
