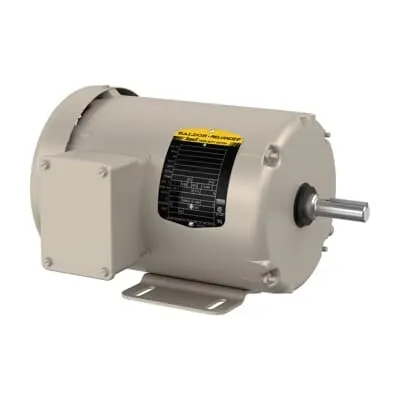

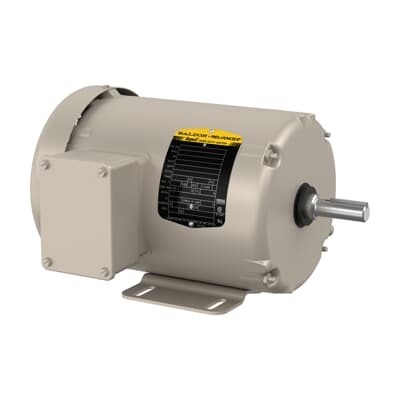

ABB 7BFDEM3554 Farm Duty Motor - 3-Phase TEFC
Part Number: 7BFDEM3554
Quick Summary
Farm Duty Motor 7BFDEM3554 provides reliable 1.5 HP performance for rugged farm equipment and processing lines. The design addresses common downtime and performance variability with a robust 3-phase, dual-voltage solution. Certifications such as CSA, CSA EEV, and UR reinforce compliance and safe operation in demanding environments. With stock available across multiple warehouses and zero-day lead times, this motor supports quick project ramp-ups while delivering energy-efficient operation and straightforward installation for system integrators and maintenance teams.
Product Information
Extended Description
7BFDEM3554 ABB: Farm Duty Motor 1.5 Hp 230 V (FDEM3554)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56,3524M,TEF
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM3554
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE2319: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDEM3554
Gross Volume
3496.049 in³
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56,3524M,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 1.5 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM3554)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.4 A | 2.2 A
Rated Efficiency
86.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35E2319L955G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 1.5 HP, 3-phase design delivers consistent power delivery at 60 Hz, reducing stalls and improving throughput in conveyors and mixers used on farms. This translates to measurable productivity gains and lower maintenance costs in agricultural processing lines. Feature → Business Impact → Application: TEFC enclosure paired with a Frame Size 56 enhances dust and moisture resistance, enabling reliable operation in grain handling and outdoor environments. Feature → Business Impact → Application: Dual voltage 230 V / 460 V simplifies installation across facilities with varying power infrastructure, cutting wiring complexity and installation time for farmers and integrators. Feature → Business Impact → Application: NEMA Design Code B, Insulation Class F, and Premium Efficiency contribute to longer motor life, lower energy consumption, and predictable performance for continuous duty applications. Feature → Business Impact → Application: Direct On Line starting and a 60 Min Duty rating support immediate startup in loading conveyors and agri-processing lines, reducing startup time and operating costs. Insight: Stocked At Warehouses and 0-day Lead Time minimize downtime during plant commissioning or maintenance outages, while the 41 lb weight and Foot Mounted base simplify retrofits and mounting.
Get a Quick Quote for a ABB 7BFDEM3554
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM3554?
Enquire Now
FAQs
Yes. The 7BFDEM3554 is specified for dual voltage operation (230 V / 460 V) in a 3-phase configuration, making it suitable for facilities with varying power supplies. It also features a foot-mounted base and Direct On Line starting for straightforward integration with standard VFDs or direct mains supply.
Key specs include 1.5 HP output, 1750 r/min rated speed (1800 r/min synchronous), 60 Hz frequency, 3 phases, frame size 56, TEFC enclosure, Insulation Class F, and efficiency around 86.5%. It has a rated current of 4.4 A and a Power Factor of 0.72, suitable for continuous farm duty applications.
Ideal for farm duty conveyors, grain handling systems, fans, and processing equipment requiring reliable, continuous operation. The motor’s TEFC enclosure and rugged build support dusty, outdoor, and moisture-prone environments common in agriculture, while its compact 56-frame size enables easy retrofits.
The motor carries CSA, CSA EEV, and UR certifications, indicating compliance with safety and electrical standards for industrial use. These approvals support safer operation, easier customer acceptance, and smoother regulatory filing for projects in the United States and globally.
Expect low maintenance due to a robust ball-bearing setup (6205/6203), a durable TEFC enclosure, and high efficiency (86.5%). Stock availability and 0-day lead time reduce downtime during commissioning or maintenance windows, delivering a favorable total cost of ownership and faster return on investment for farm automation projects.
