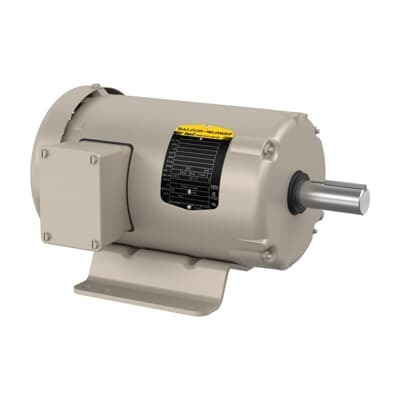

ABB FDEM3610T-5 Farm Duty Motor - IE3 Premium
Part Number: 7BFDEM3610T-5
Quick Summary
Farm Duty motor ABB FDEM3610T-5 powers agricultural equipment with reliable 3 HP performance for rugged farming environments. Engineers often face high energy costs and retrofit challenges when upgrading legacy motors. This model delivers premium IE3 efficiency, a TEFC enclosure, and a 182T frame for easy, code-compliant installation. Designed for direct-on-line starting and strong warehouse stocking options, it simplifies procurement and maintenance across U.S. and international sites. By pairing farm-duty reliability with standard mounting and strong certifications, you reduce total cost of ownership while improving uptime. This combination supports scalable farm automation and industrial processes.
Product Information
Extended Description
7BFDEM3610T-5 ABB: Farm Duty Motor 3 Hp 575 V (FDEM3610T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182T,3532M,TEF
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM3610T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE3202: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
FDEM3610T-5
Gross Volume
3590.443 inÂł
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182T,3532M,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 3 HP, 3600 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (FDEM3610T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
Farm Duty
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
50 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.9 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35E3202M839G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 3600 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
575 V
Feature: IE3 premium efficiency with 3 HP output and 575 V input. Business Impact: Reduces energy consumption and operating costs in continuous-duty applications. Application: Conveyors, pumps, and fans in agricultural facilities benefit from lower power bills and cooler operation. Feature: TEFC enclosure rated for ambient up to 40 °C. Business Impact: Enhanced protection against dust, moisture, and wash-down environments. Application: Farm buildings and equipment rooms where reliability and enclosure integrity matter. Feature: Frame size 182T with foot-mounted, horizontal mounting (F1). Business Impact: Simplifies retrofits and installation, enabling quick integration into existing systems. Application: Retrofit projects and new farm automation lines. Feature: Direct On Line starting and 60-minute duty rating. Business Impact: Minimal control hardware, fast commissioning, predictable lifecycle. Application: Automation lines, conveyors, and process pumps. Feature: Insulation Class F and 92% PF with 3450 r/min nominal speed. Business Impact: Higher efficiency and better performance under load, improving system responsiveness. Application: Continuous-operation drives and agricultural processing equipment. Feature: Certifications CSA | CSA EEV | UR and NEMA Design Code B. Business Impact: Procurement compliance and safer sourcing across North America. Application: Regulated facilities and OEM integrations requiring recognized certifications. Feature: Stocked at multiple warehouses with US origin. Business Impact: Shorter lead times and easier supply chain planning. Application: Global projects and maintenance planning where downtime is costly.
Get a Quick Quote for a ABB 7BFDEM3610T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM3610T-5?
Enquire Now
FAQs
Yes. The FDEM3610T-5 is designed for 575 V, 3-phase power and direct-on-line starting. It features a 182T frame and foot-mounted configuration with horizontal mounting (F1), enabling straightforward retrofits into existing equipment and standard industrial bases.
The motor delivers IE3 premium efficiency, a rated speed of 3450 r/min, and a synchronous speed around 3600 r/min. With a PF of approximately 92% and insulation class F, it provides reliable performance under continuous loads typical of conveyors, pumps, and fans.
Yes. Marketed as Farm Duty, it is designed for continuous operation in agricultural environments. Its 60-minute duty rating and robust TEFC enclosure make it well-suited for conveyors, irrigation pumps, and ventilation fans used in farms and agribusiness facilities.
The FDEM3610T-5 carries CSA, CSA EEV, and UR certifications, along with a NEMA Design Code B. These credentials support safer procurement, compliance with North American standards, and smoother integration into regulated systems.
Warranty terms specify that products under warranty must be returned. The motor’s stock availability across warehouses supports shorter downtime for maintenance or replacement, while its efficiency and durable TEFC design contribute to a favorable return on investment over the motor’s service life.
