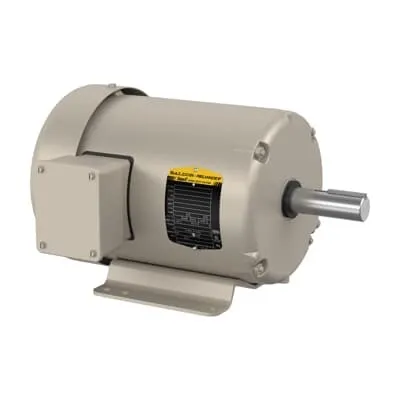

ABB 7BFDEM3615T-5 Farm Duty Motor - CSA/UR
Part Number: 7BFDEM3615T-5
Quick Summary
Farm Duty Motor 7BFDEM3615T-5 is a 5 HP, 575 V three-phase motor for rugged agricultural and industrial use. In tough environments downtime and maintenance costs erode margins; this motor is built to deliver reliable start-up and long service life. It carries CSA, UR, and CSA EEV certifications, reinforcing safety and regulatory compliance in North American applications. With IE3 premium efficiency, a TEFC enclosure, and a compact 184T frame, it reduces energy use and maintenance across farm and industrial lines. Designed for quick installation and predictable performance, it integrates with standard bases and common 184T components for fast ROI. This translates to shorter downtime windows, fewer spare parts, and better overall equipment effectiveness.
Product Information
Extended Description
7BFDEM3615T-5 ABB: Farm Duty Motor 5 Hp 575 V (FDEM3615T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3642M,TEF
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM3615T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ173: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
FDEM3615T-5
Gross Volume
7192.91 in³
Gross Weight
93 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3642M,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (FDEM3615T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Farm Duty
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
93 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.3 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
575 V
Foot-mounted 184T frame with TEFC enclosure simplifies installation and integration, reducing mounting time and field fabrication. This translates to shorter project timelines and lower commissioning costs in new farm facilities or processing lines. The 7BFDEM3615T-5 is well-suited for conveyors, fans, and pumps in agricultural and light industrial settings, delivering dependable operation where uptime is critical. IE3 premium efficiency improves energy use at 60 Hz and 575 V, lowering operating costs over the motor’s life, while direct-on-line starting reduces control complexity and startup wear for belt-driven loads. NEMA Design B and insulation Class F provide robust performance in 40 °C ambient conditions, supporting regulatory compliance and long service life in demanding environments. With 93 lb weight, 26.625 in length, and 16.625 in width, it offers a balanced footprint for quick replacement and maintenance planning, and its stock at multiple warehouses enables faster replenishment and ROI.
Get a Quick Quote for a ABB 7BFDEM3615T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM3615T-5?
Enquire Now
FAQs
The motor is foot-mounted with a 184T frame and horizontal mounting orientation (F1), compatible with standard bases and 1.13 in shaft. This simplifies retrofit and new installations alike.
It is a 3-phase, 575 V, 60 Hz motor rated at 5 HP with a rated current of 5.3 A, IE3 premium efficiency, and a power factor around 0.78. Direct-on-line starting is supported for straightforward commissioning.
Yes. Designed for continuous farm duty, it features 4 poles with a synchronous speed of 1800 r/min, TEFC enclosure, and robust NEMA Design B characteristics suitable for conveyors, pumps, and ventilation in agricultural settings.
The motor carries CSA, CSA EEV, and UR certifications, aligning with North American safety and regulatory requirements.
Lead time is listed as 0 day with stock at multiple warehouses (US and international). Warranty terms indicate the product must be returned if defective, supporting fast replacement and minimized downtime.
