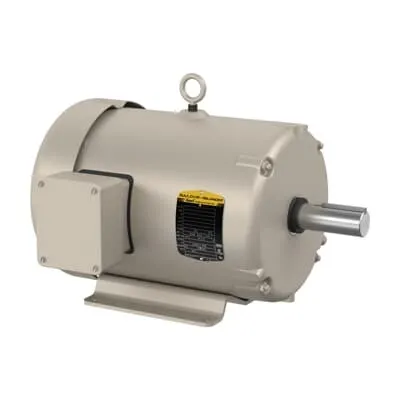

ABB FDEM3714T Farm Duty Motor - 10HP, TEFC, 60Hz
Part Number: 7BFDEM3714T
Quick Summary
Farm Duty Motor is a rugged, single-speed drive designed for agricultural equipment and light industrial applications. This ABB model delivers reliable power where continuous operation matters, helping minimize downtime and maintenance costs. For engineers facing tight procurement windows, the FDEM3714T offers immediate availability with stock in multiple warehouses and a zero-day lead time. It carries CSA, CSA EEV, and UR certifications, reinforcing compliance in safety-critical environments. The motor also aligns with NEMA standards and IE3 efficiency, ensuring energy savings and regulatory alignment. With its flexible 230/460 V operation and robust TEFC enclosure, this model supports faster commissioning and lower total cost of ownership in plant-floor motor fleets.
Product Information
Extended Description
7BFDEM3714T ABB: Farm Duty Motor 10 Hp 230 V (FDEM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3752M,TE
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN377: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
FDEM3714T
Gross Volume
7561.383 in³
Gross Weight
165 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3752M,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM3714T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Farm Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 10 HP, 1770 RPM, 4P design delivers consistent torque at 60 Hz, enabling reliable drive for belt conveyors, pumps, and agri-processing lines; this reduces startup shocks and energy waste in daily operations. Feature → Business Impact → Application: TEFC enclosure protects against dust, moisture, and variable farm conditions, extending motor life and reducing maintenance cycles in outbuilding installations and agricultural equipment. Feature → Business Impact → Application: Dual voltage 230/460 V wiring flexibility simplifies integration with existing plant power systems, lowers inventory costs, and speeds installation in mixed-voltage facilities such as automated feed systems and irrigation pumps. Feature → Business Impact → Application: IE3-rated efficiency (91.70%) and a 1.15 service factor translate to measurable energy savings and improved load handling for continuous-duty tasks like grain conveyors and silo handling. Feature → Business Impact → Application: Foot-mounted, horizontal 215T frame with NEMA Design Code A supports quick retrofits and stable mounting on standard bases in farm buildings and processing lines. Feature → Business Impact → Application: CSA, CSA EEV, and UR certifications provide regulatory assurance for compliance-heavy projects and reduce risk during audits in food processing and agricultural utility applications. Feature → Business Impact → Application: Stocked At Warehouses and 0 day Lead Time dramatically shorten procurement cycles for urgent maintenance and capital projects across US and global sites, enabling faster project turnover and reduced downtime.
Get a Quick Quote for a ABB 7BFDEM3714T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM3714T?
Enquire Now
FAQs
Yes. The FDEM3714T is foot-mounted with a horizontal mounting orientation (F1) and uses a 215T frame size, which aligns with common base plates and bolt patterns. Its mounting compatibility simplifies retrofits on existing plant lines, reduces installation time, and minimizes the need for specialized adapters, ensuring a smooth integration into conveyors, pumps, and ag equipment.
Key specs include 10 HP output, 1770 rpm, 3-phase operation at 60 Hz, and dual voltage 230/460 V. It employs a TEFC enclosure, a 215T frame, and a 1.15 service factor with an IE3 efficiency class. Shaft diameter is 1.38 in, and the motor is NEMA Design Code A, which informs starting characteristics and compatibility with direct-on-line starters.
Absolutely. The Farm Duty designation, continuous-duty rating, and 60-minute duty time make it suitable for irrigation pumps, feed conveyors, and silo transport systems. The 230/460 V option and robust TEFC enclosure enhance suitability for outdoor and semi-indoor farm environments while maintaining reliable performance under typical agricultural loads.
The motor carries CSA, CSA EEV, and UR certifications, aligning with electrical safety and efficiency standards. It also references NEMA standards in its design code, ensuring compatibility with common industrial controls and safeguarding regulatory audits for equipment used in food processing, farming, and other regulated sectors.
Lead time is listed as 0 days with stock at multiple warehouses, enabling rapid maintenance and project acceleration. Warranty terms indicate that products are supported under warranty with a policy that returns are required if a warranty claim is necessary. Long-term value comes from IE3 efficiency, low maintenance TEFC design, and broad availability reducing downtime and total cost of ownership.
