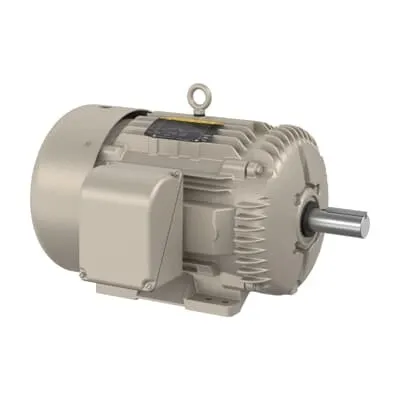

ABB 7BFDEM4104T Farm Duty Motor - IE3 Premium Efficiency
Part Number: 7BFDEM4104T
Quick Summary
Farm Duty Motor 30 HP is a rugged AC motor for continuous duty in farm equipment and light industrial applications. Engineers and maintenance teams often contend with thermal stress, unplanned downtime, and inconsistent supply. This model addresses those challenges with a TEFC enclosure, a robust 286T frame, and direct-on-line starting for straightforward integration. It carries critical certifications (CSA, UR, CSA EEV) that support compliance in North American markets while delivering IE3 premium efficiency to reduce energy costs. With stock available across multiple warehouses and a 0-day lead time, it enables faster procurement and improved project timelines without sacrificing reliability or performance.
Product Information
Extended Description
7BFDEM4104T ABB: Farm Duty Motor 30 Hp 230 V (FDEM4104T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1760RPM,3PH,60HZ,286T,1056M,TE
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4104T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYJ526: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4104T
Gross Volume
14448.906 inÂł
Gross Weight
425 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
30HP,1760RPM,3PH,60HZ,286T,1056M,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 30 HP, 1800 RPM, Frame Size 286T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM4104T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
80 %
Product Name
Farm Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
425 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
76 A | 38 A
Rated Efficiency
93.60 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 286T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure provides superior protection against contaminants and moisture, reducing maintenance cycles and extending motor life in harsh agricultural environments; this translates to lower total cost of ownership for grain handling and processing lines. Feature → Business Impact → Application: 286T frame and foot-mounted configuration deliver mechanical stability and straightforward installation, enabling quick retrofits on existing equipment and reducing downtime during motor replacements. Feature → Business Impact → Application: 230/460 V, 60 Hz, 3-phase wiring supports flexible site integration and compatibility with common industrial power systems, easing electrical design and minimizing panel complexity in conveyors and hay balers. Feature → Business Impact → Application: IE3 premium efficiency lowers running costs and meets evolving regulatory expectations, providing energy savings on continuous-duty farm equipment such as milking systems and feed conveyors. Feature → Business Impact → Application: Direct On Line starting and 1760 rpm synchronous speed deliver reliable startup performance with minimal gear train or braking requirements, improving line uptime on grain augers and seed spreaders. Feature → Business Impact → Application: Stocked at multiple warehouses with 0-day lead time supports just-in-time procurement for capital projects and maintenance shutdowns, reducing inventory risk and accelerating deployment of new lines in the agricultural sector. Safety, standards, and compliance are reinforced by CSA, UR, and CSA EEV certifications, ensuring traceability and regulatory alignment for global installations.
Get a Quick Quote for a ABB 7BFDEM4104T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM4104T?
Enquire Now
FAQs
Yes. The motor is rated for 230 V and 460 V operation in 3-phase systems. It comes in a foot-mounted 286T frame with a TEFC enclosure and horizontal mounting orientation (F1). This configuration simplifies retrofits and integration into existing conveyors or farm equipment without requiring special transformers or adapters.
Key specs include 30 HP output, 1760 r/min rated speed, 60 Hz frequency, 286T frame size, and 3-phase operation. The motor features an efficiency of IE3, a service factor of 1.15, and rated currents of 76 A / 38 A (Nominal). It is designed for direct-on-line starting and 230/460 V operation.
Absolutely. Its Farm Duty design, TEFC enclosure, and robust frame make it ideal for grain augers, conveyors, feeders, and other continuous-duty farm machinery. The 1760 rpm speed aligns well with typical gearboxes and auger systems, while the 60 Hz supply ensures predictable performance across rural electrical infrastructure.
The motor carries CSA, CSA EEV, and UR certifications, ensuring regulatory compliance for North American installations. NEMA design code A and premium IE3 efficiency further support reliability, energy compliance, and installation in regulated environments such as food processing and agricultural equipment.
Lead time is stated as 0 days, and stock is available at multiple warehouses (including US and international locations), reducing project timelines and downtime. Warranty terms indicate that products under warranty must be returned, aligning with standard industry practices. This translates to lower total cost of ownership and faster return on investment for capital equipment.
