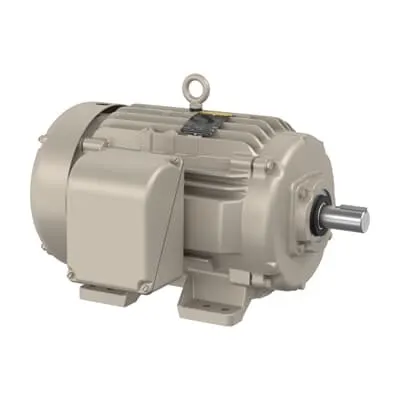

ABB FDEM4107T Farm Duty Motor - TEFC 60 Hz, 230/460V CSA CSA EEV UR
Part Number: 7BFDEM4107T
Quick Summary
Farm Duty Motor ABB FDEM4107T delivers reliable 25 HP power for rugged agricultural and industrial applications. In demanding farm and rugged process environments, downtime and misalignment can drive costly maintenance. It carries CSA, CSA EEV, and UR certifications, with NEMA-aligned design considerations, reinforcing regulatory compliance and safe operation. This model features a TEFC enclosure, dual voltage 230/460 V, and 60 Hz operation, providing flexible deployment across sites. With a foot-mounted 284TS frame and direct-on-line start, installation is straightforward and minimizes commissioning time, while stock availability in multiple warehouses reduces lead times. For maintenance teams, a robust insulation class F and premium efficiency help lower operating costs and thermal load in high-temperature environments.
Product Information
Extended Description
7BFDEM4107T ABB: Farm Duty Motor 25 Hp 230 V (FDEM4107T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
44M 2P TEFC HOR 284TS FARM DUTY SE
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4107T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
09LYL813: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4107T
Gross Volume
14448.906 in³
Gross Weight
146.51 kg
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
44M 2P TEFC HOR 284TS FARM DUTY SE
Made To Order
No
Medium Description
Farm Duty, 25 HP, 3600 RPM, Frame Size 284Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM4107T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
88 %
Product Name
Farm Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
146.51 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
58 A | 29 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
25 HP, 3600 RPM, Frame Size 284Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 284TS frame with foot-mounted base simplifies installation and alignment in tight plant layouts, reducing on-site labor costs and commissioning time for farm equipment and conveyors. Benefit: Faster deployment and lower total cost of ownership in agricultural processing lines. Application: Grain handling and feed systems where quick replacement minimizes downtime. Feature → Business Impact → Application: TEFC enclosure provides environmental protection and dust resistance, improving uptime in dusty barns and outdoor conveyors. Benefit: Extended motor life and reduced maintenance cycles in harsh agro-industrial settings. Application: Outdoor silo operations and hay baling lines. Feature → Business Impact → Application: Premium efficiency (NEMA) and 91.70% efficiency reduce energy consumption, lowering operating costs over the motor’s life. Benefit: Lower utility bills and cooler operation in continuous-duty farming equipment. Application: Feeders, mixers, and belt conveyors with long run times. Feature → Business Impact → Application: 60 Hz, dual voltage 230/460 V flexibility simplifies spare parts strategy and site-wide standardization. Benefit: Inventory optimization and easier cross-site procurement. Application: Multi-site farms and processing facilities. Feature → Business Impact → Application: Direct On Line starting and 3-phase, 25 HP output deliver strong torque at startup, minimizing mechanical stress and drive wear. Benefit: Reduced motor wear and lower maintenance costs in high-torque applications like grinders and crushers. Application: Agricultural processing lines and grain mills. Feature → Business Impact → Application: Insulation Class F and 40 °C ambient rating support reliable operation in warm environments. Benefit: Consistent performance and fewer over-temperature trips in summer harvests. Application: Any high-temperature farming or processing environment.
