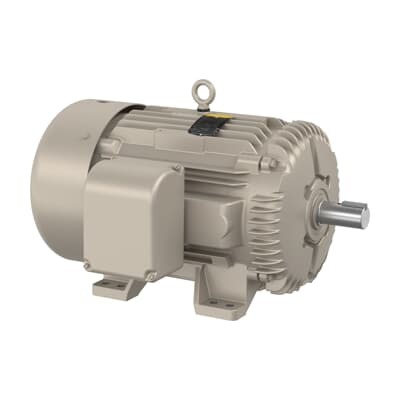

ABB 7BFDEM4109T Farm Duty Motor - 40 HP, 60 Hz, TEFC, 324TS
Part Number: 7BFDEM4109T
Quick Summary
Farm Duty motor ABB 7BFDEM4109T provides reliable 40 HP drive for pumps, fans, and conveyors in farm and industrial settings. Many buyers struggle with compatibility, installation downtime, and balancing efficiency within retrofit projects, especially when existing controls must be preserved. It carries IE3 efficiency and certifications including CSA, CSA EEV, and UR for reliable compliance across North American facilities, reducing risk in audits and procurement. Designed for 3-phase operation with TEFC sealing and a 324TS frame, it supports 230/460 V, provides robust torque at startup, and enables predictable uptime in demanding environments. This combination supports efficient pump drives, material handling, and conveyor systems common in agriculture and light manufacturing, reducing lifecycle costs.
Product Information
Extended Description
7BFDEM4109T ABB: Farm Duty Motor 40 Hp 230 V (FDEM4109T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3530RPM,3PH,60HZ,324TS,1058M,T
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4109T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYL267: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4109T
Gross Volume
18748.226 inÂł
Gross Weight
528 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
40HP,3530RPM,3PH,60HZ,324TS,1058M,TEFC,F
Made To Order
No
Medium Description
Farm Duty, 40 HP, 3600 RPM, Frame Size 324Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM4109T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
90 %
Product Name
Farm Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
528 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
90 A | 45 A
Rated Efficiency
92.40 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
40 HP, 3600 RPM, Frame Size 324Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature: Premium efficiency and farm-duty design → Business Impact: Lowers energy costs and improves regulatory compliance in continuous-duty applications → Application: Pumps, fans, and conveyors in agriculture and light manufacturing. The 92.40% rated efficiency and IE3 classification translate to measurable energy savings over the motor’s life and can support energy-performance compliance in audits. In practice, users experience reduced electricity bills and longer motor life when paired with variable-speed drives in compatible systems. Feature: TEFC enclosure and rugged 324TS frame → Business Impact: Enhanced protection against dust and moisture with straightforward installation → Application: Harsh farm environments and open machinery spaces. The totally enclosed fan-cooled design minimizes windage losses while the 324TS frame and foot-mounted configuration simplify mounting and retrofit compatibility in existing plants, reducing installation time and maintenance checks. Feature: Dual voltage and robust control interface → Business Impact: Flexible electrical sourcing and simpler upgrades from legacy equipment → Application: 230/460 V, 60 Hz, three-phase systems. Direct On Line starting capability reduces control complexity and enables fast commissioning while maintaining reliability for mid-scale conveyors and irrigation systems.Feature: Mechanical robustness and precise specifications → Business Impact: High uptime and predictable performance under continuous duty → Application: Pumps and material-handling lines. Bearing 6312, shaft 1.88 in diameter, and a 3530 r/min rated speed with a 3600 r/min synchronous speed support steady torque delivery, smooth startups, and long service intervals in demanding environments. Feature: Certifications, stock, and support → Business Impact: Compliance-ready procurement with rapid fulfillment → Application: North American facilities needing CSA, CSA EEV, and UR approvals. With 0-day lead time and stock in multiple warehouses, procurement and project planning become more predictable, enabling faster deployment of farm automation projects.
Get a Quick Quote for a ABB 7BFDEM4109T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM4109T?
Enquire Now
FAQs
Yes. The motor is a 3-phase, dual-voltage device rated for 230/460 V operation and uses a standard foot-mounted, horizontal orientation with TEFC enclosure. Direct On Line starting simplifies integration with existing soft starters or VFDs where appropriate, and its footprint (324TS frame) matches many legacy installations, minimizing modification needs during replacements.
The motor delivers 40 HP with a rated speed of 3530 r/min and a synchronous speed of 3600 r/min. It operates at 60 Hz with a voltage rating of 230/460 V and achieves a rated efficiency of 92.40% (IE3). It is a 3-phase unit designed for continuous duty and EN/UL-compliant safety and performance in industrial environments.
Ideal for pumps, fans, and conveyors in irrigation systems, grain handling, and packaging lines, the 324TS Farm Duty motor provides reliable torque, strong startup performance, and long service life. Its robust TEFC design protects windings in dusty or humid spaces, supporting uptime in demanding agricultural facilities.
This motor carries IE3 efficiency and certifications including CSA, CSA EEV, and UR, ensuring regulatory compliance and safe operation in North American facilities. These certifications facilitate procurement audits and reduce certification-related delays in project timelines.
With 0-day lead time and stock at multiple warehouses, procurement and deployment are accelerated. The motor’s robust construction, low maintenance needs, and energy efficiency contribute to reduced total cost of ownership, shorter downtime, and improved ROI for continuous-duty applications in agriculture and light manufacturing.
