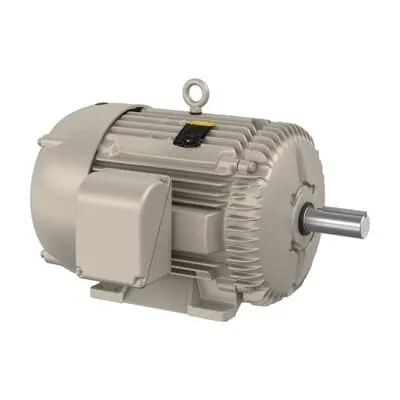

ABB FDEM4110T Farm Duty Motor - IE3 Premium Efficiency
Part Number: 7BFDEM4110T
Quick Summary
ABB FDEM4110T Farm Duty Motor delivers 40 HP of reliable power for demanding agricultural pumping and handling tasks. In remote farm environments, equipment downtime translates to lost productivity and higher operating costs, so reliability is non-negotiable. The motor carries CSA, CSA EEV, and UR certifications and a TEFC enclosure, with NEMA design A and IE3 premium efficiency to meet harsh working conditions. Its rugged 324T frame and standard foot-mount design simplify installation, spare parts management, and service scheduling, helping you reduce total cost of ownership. This makes it an ideal choice for irrigation pumps, conveyors, and processing equipment where uptime matters and energy use matters.
Product Information
Extended Description
7BFDEM4110T ABB: Farm Duty Motor 40 Hp 230 V (FDEM4110T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1775RPM,3PH,60HZ,324T,1254M,TE
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4110T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYG994: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4110T
Gross Volume
18748.226 in³
Gross Weight
451 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 40 HP, 1800 RPM, Frame Size 324T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM4110T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
82 %
Product Name
Farm Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
451 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
96 A | 48 A
Rated Efficiency
94.10 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.13 in
Short Description
40 HP, 1800 RPM, Frame Size 324T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature: 40 HP, 3-phase, 60 Hz, 230/460 V, 4-pole design with a 324T frame. Business impact: strong torque, consistent speed, and capacity to handle demanding loads in farm equipment and processing lines, reducing nuisance trips. Application: irrigation pumps, grain conveyors, and crop processing drives. Feature: IE3 premium efficiency rating. Business impact: lower energy consumption and operating costs over the motor’s life, improving sustainability and return on investment. Application: continuous-duty conveyors and pump stations where energy costs are a concern. Feature: TEFC enclosure and iron 324T frame. Business impact: superior protection against dust, moisture, and harsh environments, extending service life and reducing maintenance cycles. Application: outdoor barns, feed mills, and farm workshops. Feature: Direct On Line starting. Business impact: simplified electrical installation, fewer components, and faster commissioning, cutting installation time and commissioning risk. Application: farm conveyors, fans, and processing equipment with straightforward startup. Feature: Foot-mounted, horizontal orientation with mounting position F1 and standard drive end flange. Business impact: easy alignment with existing machinery, versatile installation options, and reduced retrofit costs. Application: gearboxes, couplings, and belt drives in compact equipment. Feature: Service factor 1.15, rated current 96 A at 230 V / 48 A at 460 V, shaft diameter 2.13 in, bearings 6312/6311, insulation class F. Business impact: headroom for overloads, predictable performance, and long bearing life; supports reliable operation in peak seasons. Application: pumps, mixers, and material handling in farm facilities.
