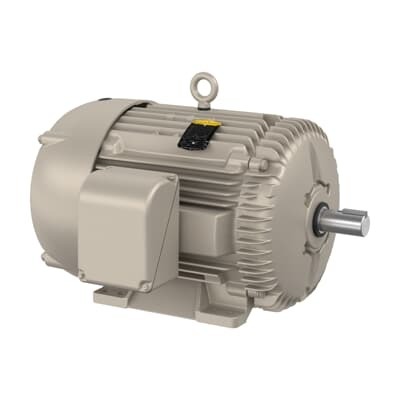

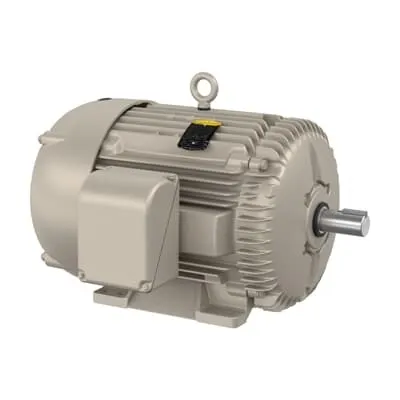

ABB 7BFDEM4114T Farm Duty Motor - 50 HP, IE3
Part Number: 7BFDEM4114T
Quick Summary
ABB Farm Duty Motor 7BFDEM4114T is a 50 HP three-phase AC motor designed for robust farm equipment and agricultural processing lines. This motor delivers reliable performance in demanding environments, helping reduce downtime and extend service intervals. It features a TEFC enclosure, a 60-minute duty rating, and a standard 326TS frame for easy replacement and compatibility with common farm power layouts. With a United States origin and immediate availability across multiple warehouses, it supports fast procurement and maintenance planning. Certified to CSA/UR standards with CSA EEV recognition, it meets strict safety and reliability requirements for North American installations. For integrators, the 230/460 V, 60 Hz rating and Direct On Line starting simplify installation and commissioning, boosting overall uptime and productivity.
Product Information
Extended Description
7BFDEM4114T ABB: Farm Duty Motor 50 Hp 230 V (FDEM4114T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3540RPM,3PH,60HZ,326TS,1252M,T
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4114T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYH685: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4114T
Gross Volume
18748.226 inÂł
Gross Weight
456 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
50HP,3540RPM,3PH,60HZ,326TS,1252M,TEFC,F
Made To Order
No
Medium Description
Farm Duty, 50 HP, 3600 RPM, Frame Size 326Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM4114T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
90 %
Product Name
Farm Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
456 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
50 HP, 3600 RPM, Frame Size 326Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure provides rugged protection against dust and moisture. Business Impact: Reduces bearing wear and corrosion in dusty barns and outdoor installations, extending motor life and cutting maintenance. Application: Farm equipment, conveyors and processing lines where environmental exposure is common. Feature: 326TS frame and foot-mounted design enable straightforward retrofit and replacement with minimal downtime. Business Impact: Faster installation, lower commissioning costs, and improved maintenance planning. Application: Replacements in existing farm-duty systems and seasonal equipment upgrades. Feature: 50 HP, 60 Hz, 230/460 V, 3-phase configuration with direct-on-line starting. Business Impact: Simple electrical integration, reduced starter equipment needs, and immediate startup capability for high-demand tasks. Application: Material handling, milling, dairy, and grain handling facilities. Feature: IE3 efficiency (Rated 93%) and 1.15 service factor. Business Impact: Lower energy consumption and higher load tolerance, improving total cost of ownership. Application: Continuous operation in continuous-duty environments with consistent performance. Feature: Synchronous speed of 3600 r/min and 3540 r/min rated speed with 2-pole design. Business Impact: Predictable performance under load and compatibility with standard drive systems. Application: Farm automation, conveyors, and processing lines. Feature: NEMA design A, 326TS frame size, and 1.88 in shaft diameter ensure broad compatibility. Business Impact: Easy procurement from common catalogs and robust mechanical integration. Application: Retrofits and new installations in agricultural settings.
Get a Quick Quote for a ABB 7BFDEM4114T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM4114T?
Enquire Now
FAQs
Yes. The 7BFDEM4114T is rated for 230 V or 460 V, three-phase operation at 60 Hz. Its 326TS frame and TEFC enclosure support direct replacement in existing farm-duty drives and standard U.S. electrical setups, simplifying retrofits and new installations alike.
Key specs include 50 HP output, 3540 r/min rated speed (3600 r/min synchronous), 3-phases, 60 Hz, and a rated efficiency of 93% (IE3). It supports a 1.15 service factor and Direct On Line starting for straightforward commissioning in farm automation.
Best suited for farm conveyors, grain handling, processing lines, and other continuous-duty equipment requiring reliable operation in dusty or outdoor environments. The TEFC enclosure and farm-duty ratings ensure performance across typical barn, milking, or feedmill applications.
The motor carries CSA, UR, and CSA EEV certifications, ensuring safety and reliability for North American installations and global compatibility where these approvals are required.
With stock in multiple warehouses and a 0-day lead time typical in SSD programs, procurement is fast. The rugged TEFC design, high efficiency, and long service intervals reduce maintenance costs and downtime, delivering favorable total cost of ownership for farm automation projects.
