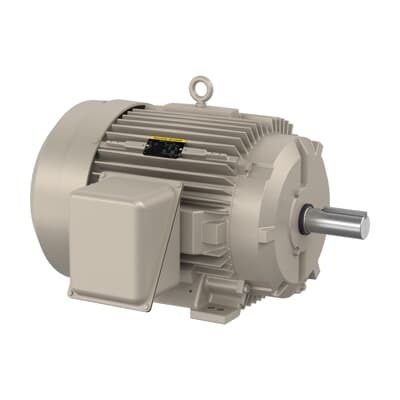

ABB 7BFDEM4314T Farm Duty Motor - TEFC Premium Efficiency
Part Number: 7BFDEM4314T
Quick Summary
Farm Duty Motor 60 HP from ABB delivers rugged, reliable power for demanding agricultural and processing applications. Engineers often face downtime due to mismatched voltage, enclosure, or part availability, which drives maintenance costs higher. These motors carry CSA EEV, UR, and CCSA US certifications, aligning with NEMA standards for safe operation and regulatory compliance. With a TEFC enclosure and a 364T frame, this motor withstands harsh environments while delivering energy-efficient performance. The 230/460 V, 60 Hz, 3-phase configuration supports flexible power sourcing, and stock is readily available to minimize production interruptions and maximize line throughput.
Product Information
Extended Description
7BFDEM4314T ABB: Farm Duty Motor 60 Hp 230 V (FDEM4314T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1780RPM,3PH,60HZ,364T,1462M,TE
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4314T
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617428-066: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4314T
Gross Volume
33833.008 inÂł
Gross Weight
412.769 kg
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
60HP,1780RPM,3PH,60HZ,364T,1462M,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 60 HP, 1800 RPM, Frame Size 364T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM4314T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
84 %
Product Name
Farm Duty
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
412.769 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
140 A | 70 A
Rated Efficiency
95 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Short Description
60 HP, 1800 RPM, Frame Size 364T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature: Farm Duty design with 60 HP, 1780 RPM, 364T frame, 230/460 V, 60 Hz, 3-phase. Business Impact: Delivers continuous, high-torque operation with predictable performance and long service life in farm and processing line equipment. Application: Irrigation pumps, conveyors, and grain handling systems benefit from reliable startup and steady load response. Feature: TEFC enclosure and rugged frame (364T). Business Impact: Provides excellent dust, moisture, and contaminant protection, reducing maintenance cycles and downtime. Application: Outdoor conveyors and hydroponic systems in harsh agricultural environments benefit from minimal enclosure degradation. Feature: Premium Efficiency (0.95) with NEMA alignment. Business Impact: Lowers energy costs and heat generation, improving system COP and reducing cooling loads. Application: Continuous-duty motors in processing plants and agricultural facilities improve overall energy management. Feature: Direct On Line starting, 3-phase operation, 60 Hz. Business Impact: Simple installation and fast commissioning with minimal external components, lowering total installed cost. Application: New builds and retrofits in industrial farms and food processing lines benefit from straightforward integration. Feature: 3-phase, 1780 r/min synchronous speed, 4-pole design with 2.38 in shaft. Business Impact: Consistent speed control and reliable coupling to driven equipment, optimizing belt and pulley drives. Application: Feed mills and irrigation pumps require precise speed matching for throughput stability. Feature: Certifications and compliance (CSA EEV, UR, CCSA US; Standards: NEMA). Business Impact: Regulatory-ready motor with traceable testing and safer operation, supporting QA and waste reduction. Application: Any facility aiming for compliance-driven procurement and long-term warranty confidence. Feature: Stocked At Warehouses and 0-day Lead Time. Business Impact: Short lead times reduce project risks and maintenance downtime, accelerating time-to-value for capital projects. Application: OEMs and distributors stocking farm-duty motors for maintenance contracts and standby inventory benefit from rapid fulfillment.
Get a Quick Quote for a ABB 7BFDEM4314T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM4314T?
Enquire Now
FAQs
Yes. The 7BFDEM4314T is rated for 230/460 V, 3-phase operation at 60 Hz, making it suitable for common industrial and agricultural power distributions. Its direct-on-line starting and 364T frame simplify mounting to standard foot-mounted bases, and its horizontal mounting with F1 orientation supports straightforward integration in apps such as irrigation pumps and processing conveyors.
Key specs include 60 HP output, 1780 r/min (approx. 1800 r/min synchronous), 4 poles, frame size 364T, TEFC enclosure, and rated efficiency around 95%. It operates at 3-phase, 60 Hz with a design that supports direct-on-line starting, delivering reliable torque for continuous duty in farm and industrial applications.
Absolutely. The Farm Duty designation, coupled with a rugged TEFC enclosure and a 364T frame, makes it ideal for irrigation pumps, conveyors, and grain handling equipment. Its 60 HP power, 1780 RPM speed, and robust shaft dimensions ensure dependable operation under continuous load with minimal maintenance in outdoor or dusty environments.
This motor carries CSA EEV, UR, and CCSA US certifications, aligning with US safety and performance standards. It also references NEMA compatibility and Premium Efficiency ratings, which support safer operation, energy savings, and easier QA documentation for regulated industries such as agriculture and food processing.
With immediate stock availability and 0-day lead time in multiple warehouses, downtime is minimized. The high efficiency, durable TEFC enclosure, and regulatory certifications reduce energy costs and risk of non-compliance, contributing to faster ROI. Its direct mounting and standardized footprint simplify installation and spare-part management, lowering total cost of ownership.
